9"x6"x3/4" Stainless Steel Tray Only Flanged Mount
9"x6"x3/4" Stainless Steel Tray Only Flanged Mount

Stainless Steel Flush Mount With Drain Drip Tray (Tray Only) - 9" X 6" X 3/4"

Write a Review
Your Price: $32.99
Availability: In Stock.
Wholesale Pricing: Available
9"x6"x3/4" Stainless Steel Tray Only Flanged Mount with Drain Drip Tray

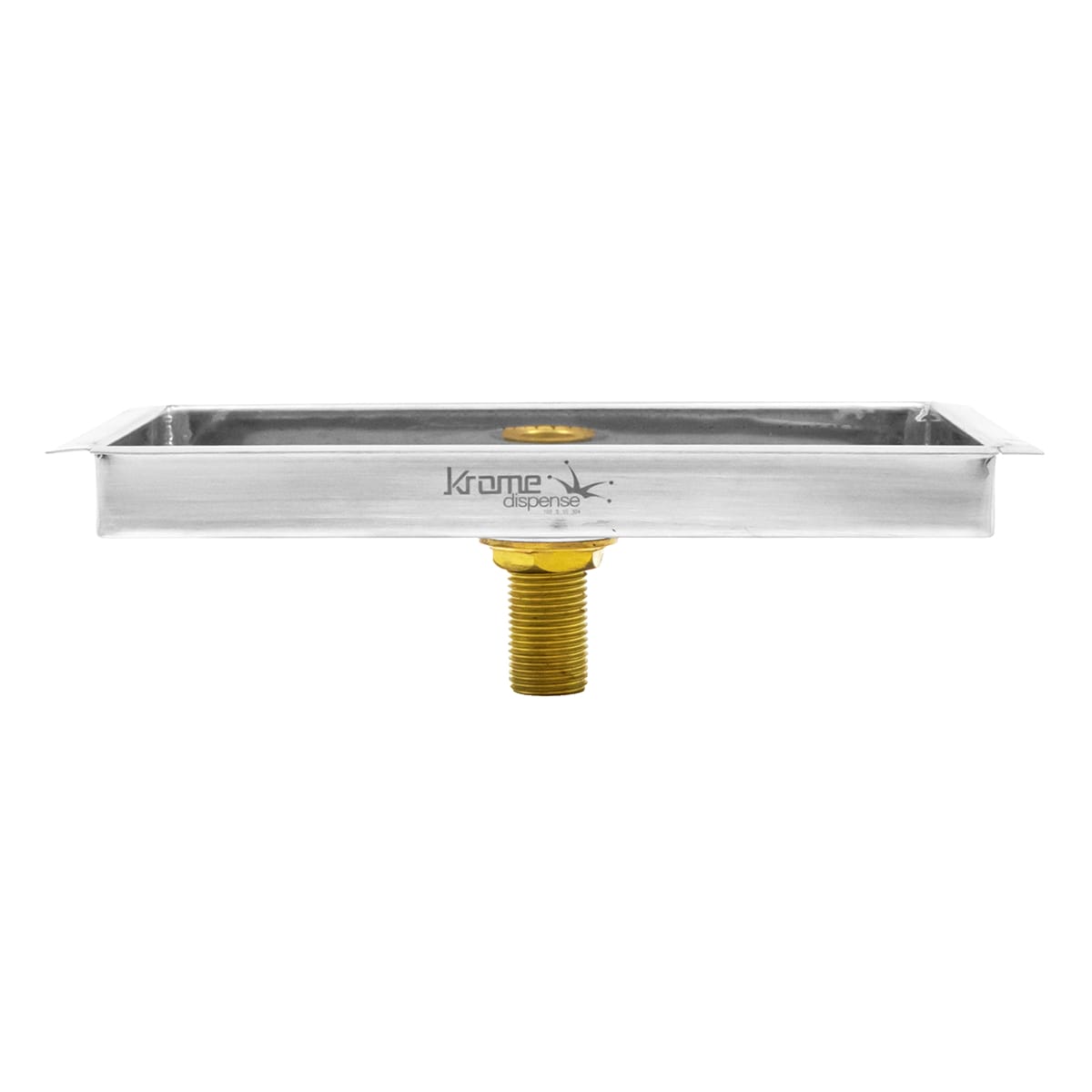

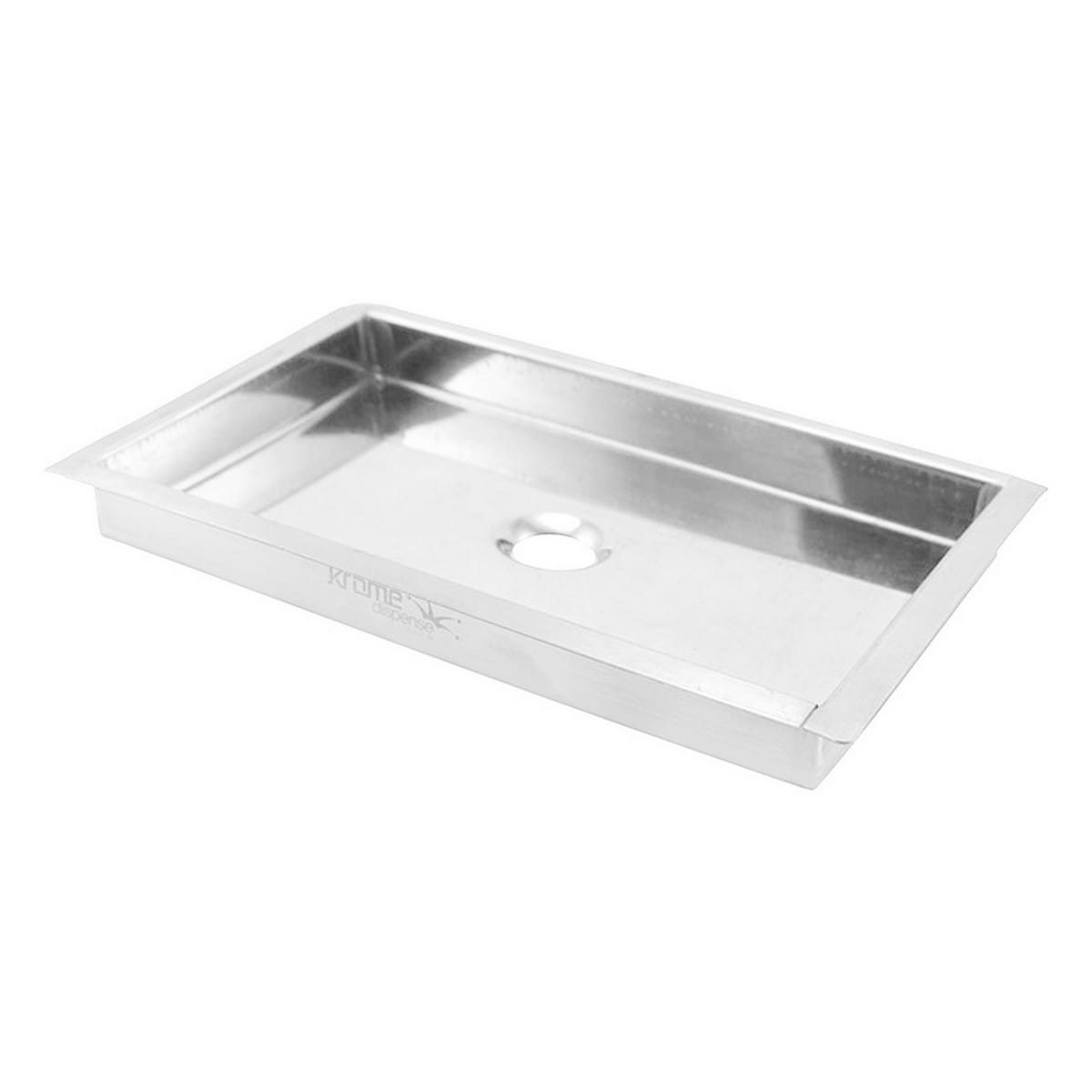

This drip tray is of the flanged mount variety which is ideal for installing directly into a surface. It is made of strong 304 stainless steel. This model has a 7/8" drainage hole that is intended to be installed with the included 2" 1/2" Male NPT brass drain nipple, it comes with a 1/2" washer, a 1/2" silicone o-ring, and a flanged lock nut. The drip tray has a 3/8" flange that goes all around it resulting in the dimensions of the flush flange portion being 8-7/8"x6". Whereas the dimensions of the underside of the tray are 8-1/8"x5-5/16"x3/4".

Please note that this is the tray only.


Specifications:
  • Made out of 304 Stainless Steel
  • Flush Mount Drip Tray
  • Welded corners, finished smooth for safety and appearance
  • Tray Only

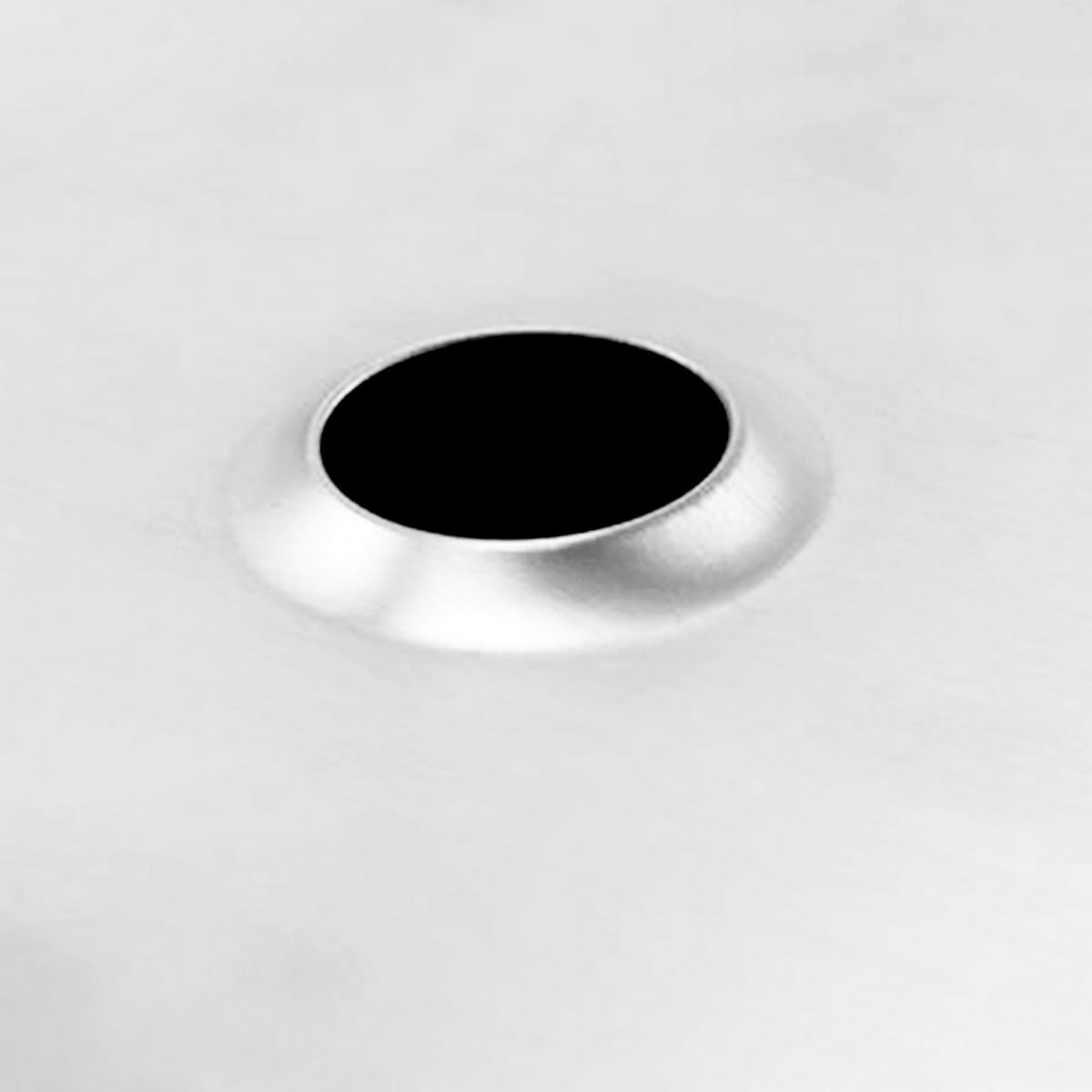

  • 7/8" OD Drainage Hole

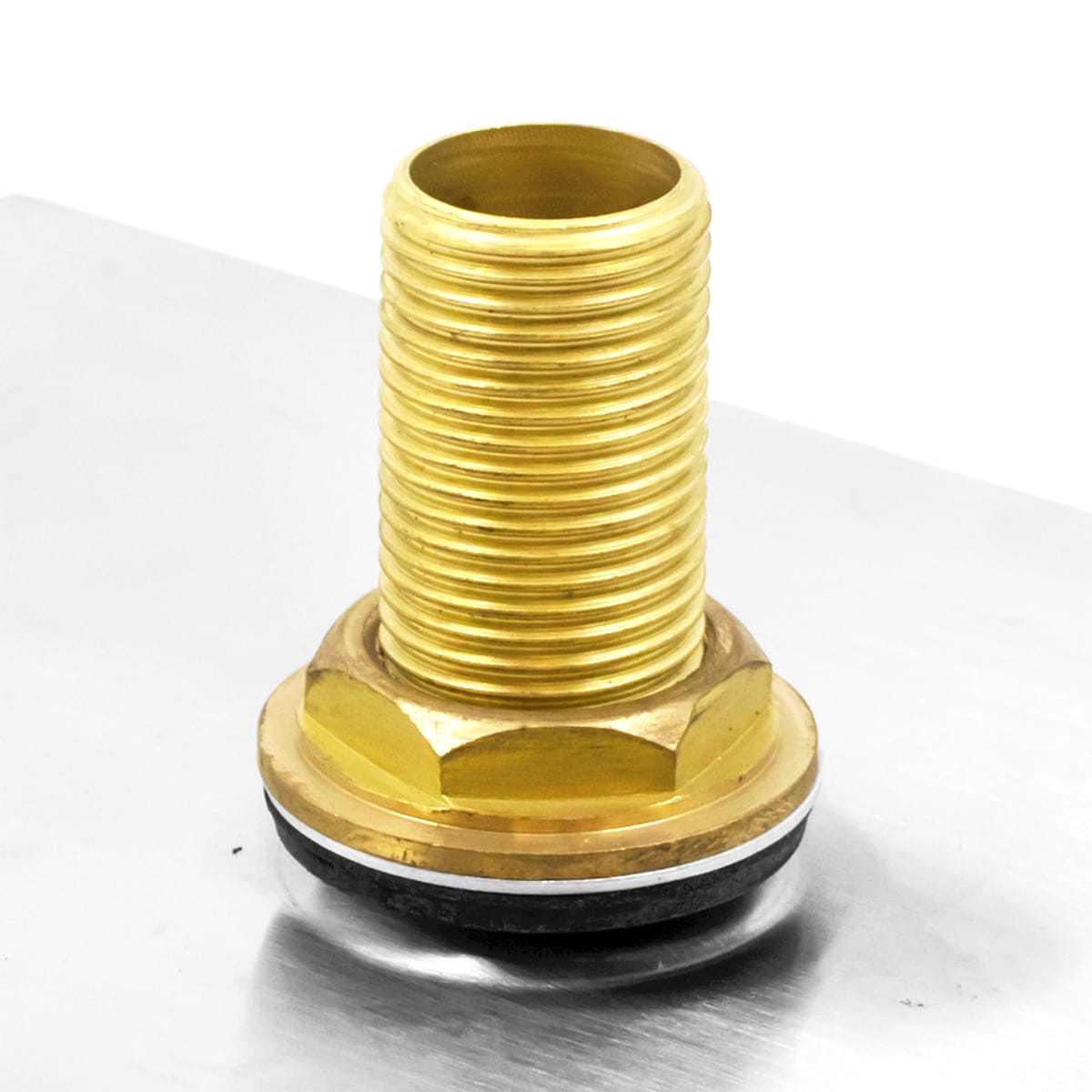

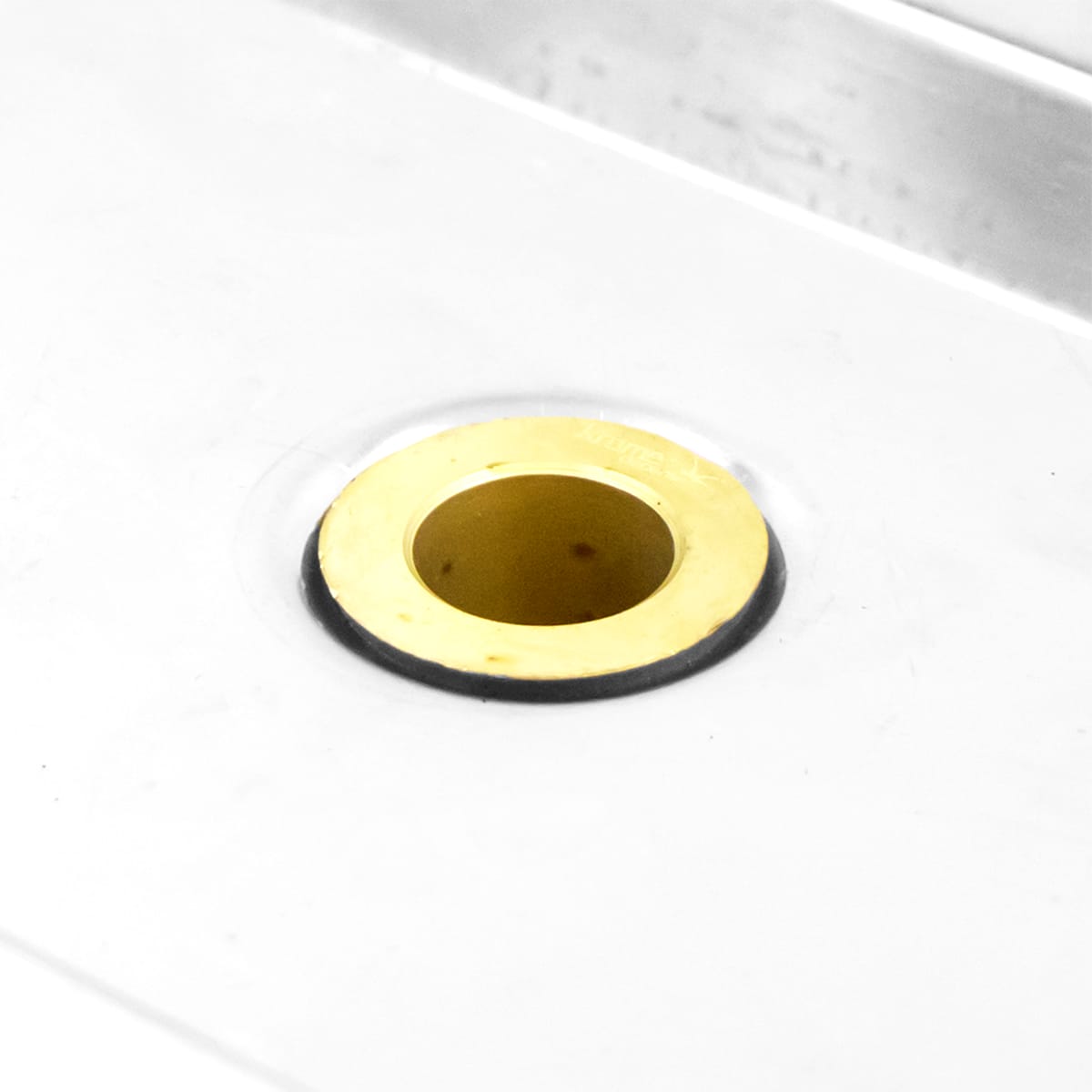

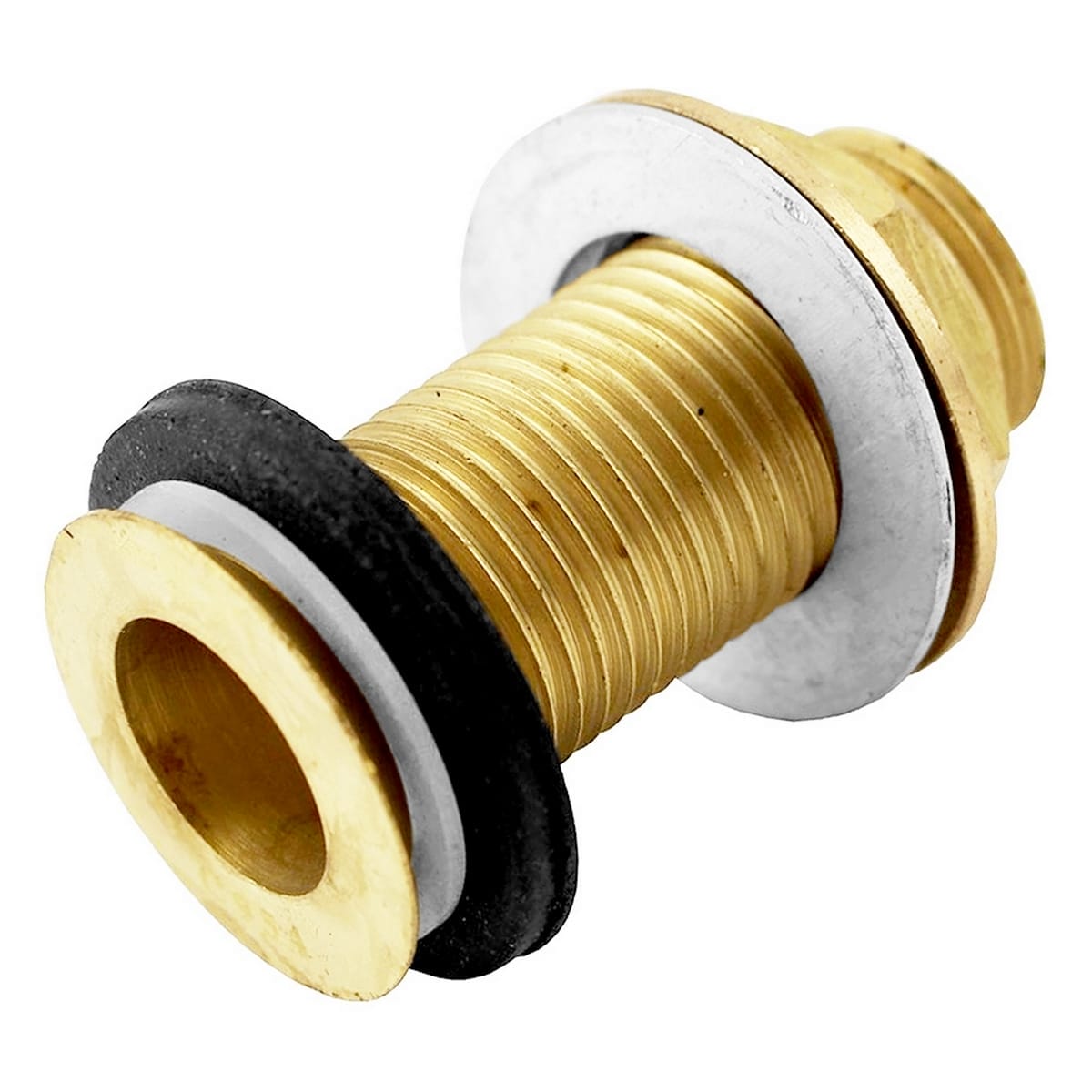

Drain Hardware Details:
  • 1/2" Brass Nipple
  • 1/2" Washer
  • 1/2" Nut
  • 2" Shank Length

Dimensions:
  • 8 1/8" Length
  • 5 1/4" Width
  • 3/4" Height

Exterior Flush Dimensions:
  • 9" Length
  • 6" Width
