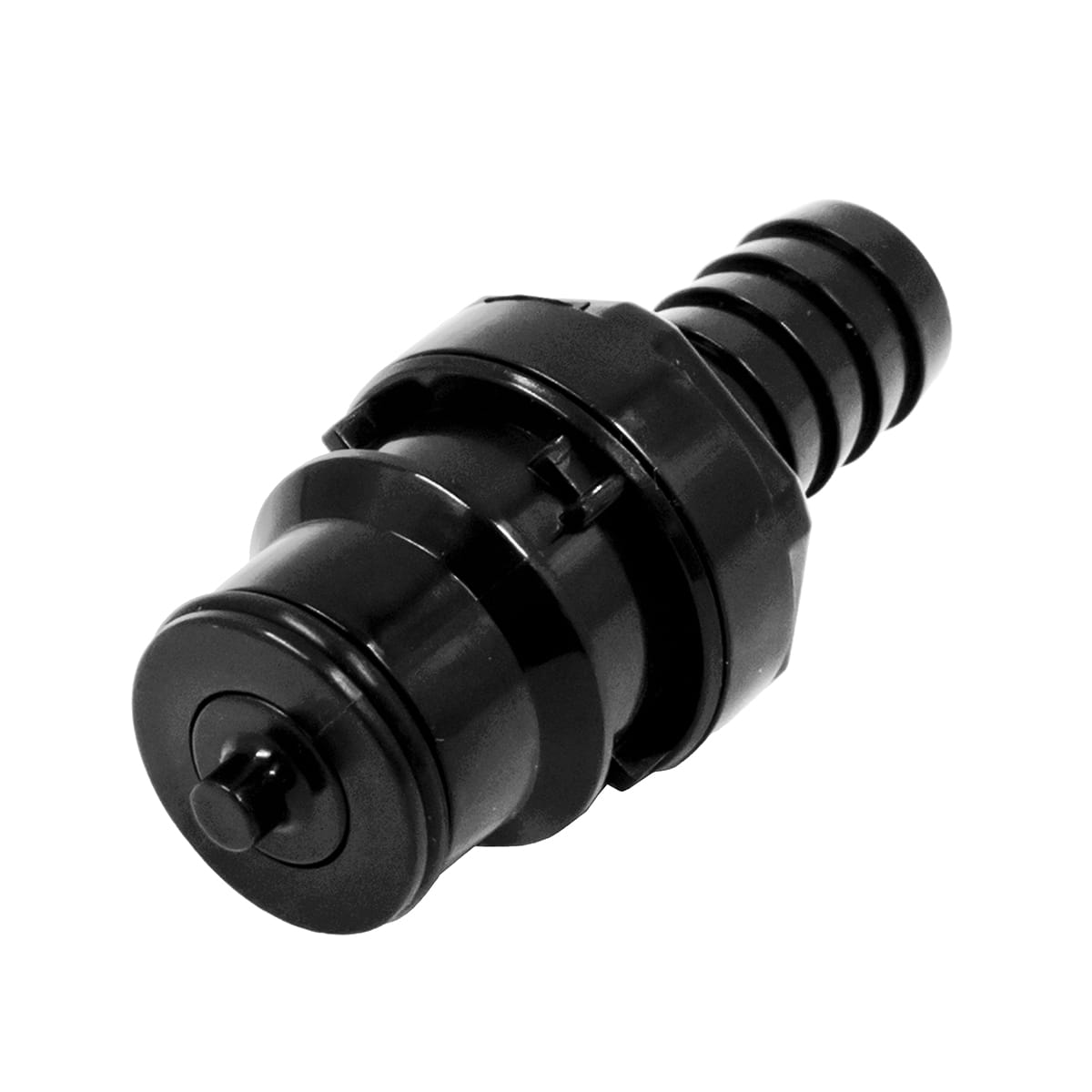

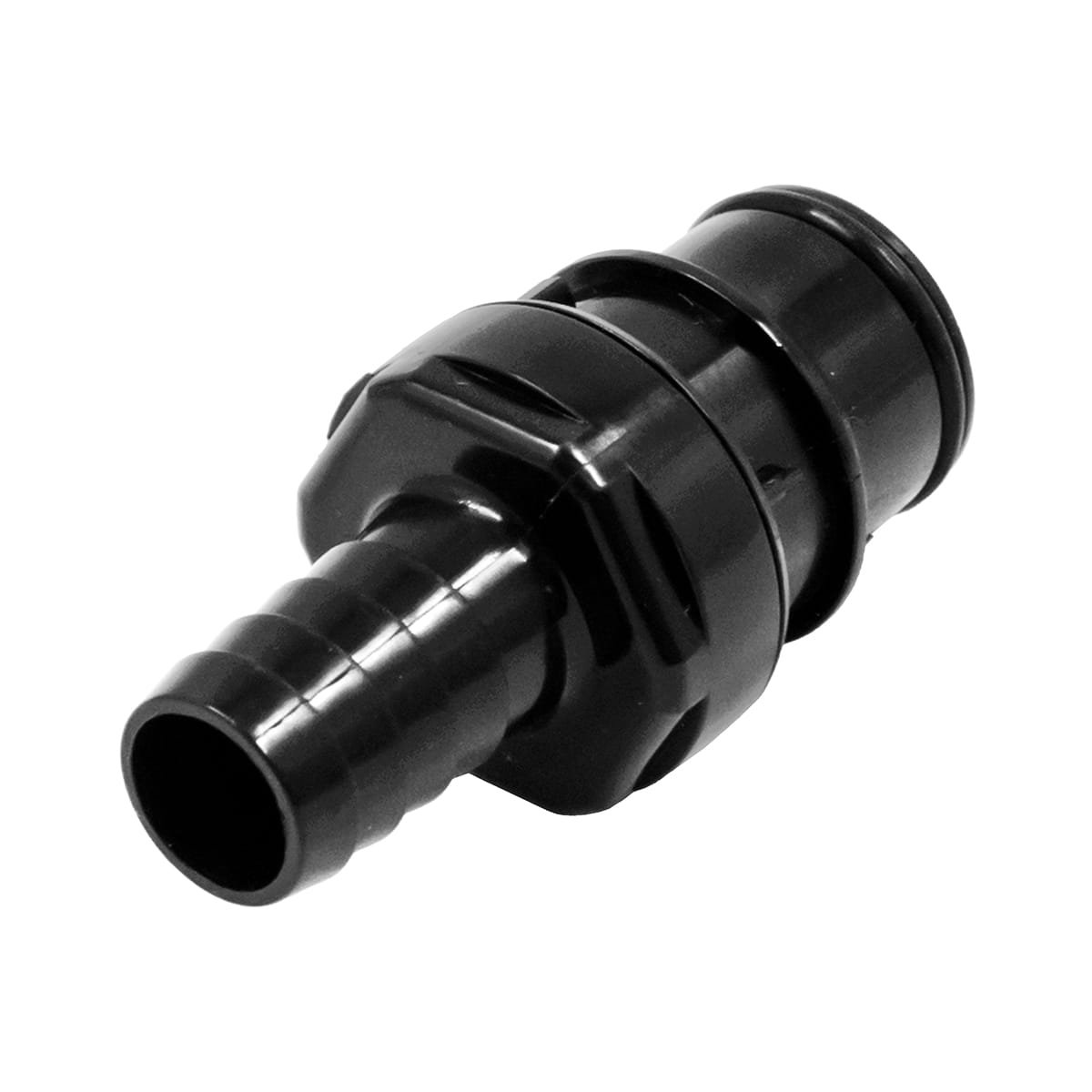

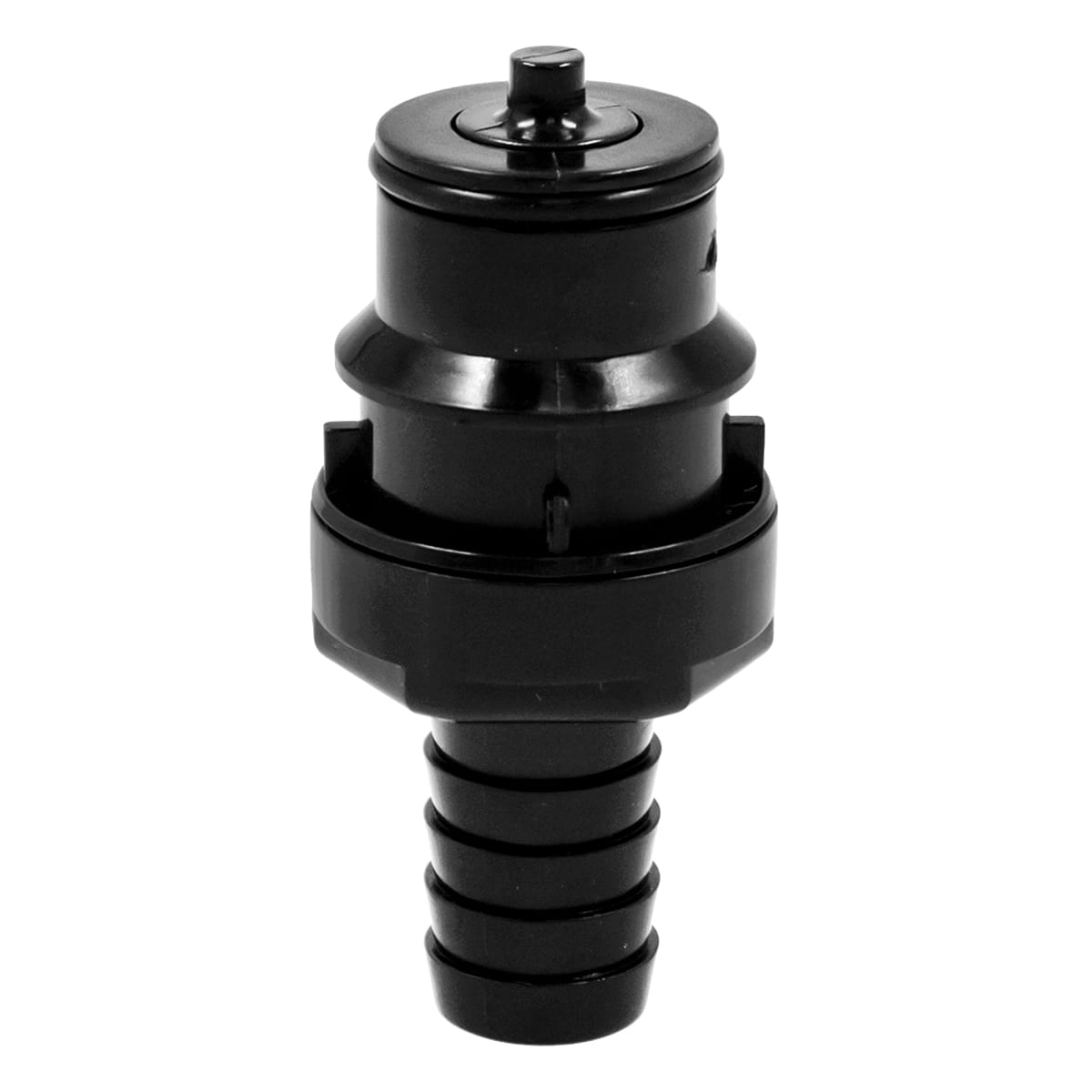

JoinTech Plastic In-Line Disconnect Coupler - Male QD X 1/2" (13mm)
JoinTech Plastic In-Line Disconnect Coupler - Male QD X 1/2" (13mm)

JoinTech Plastic In-Line Disconnect Coupler - Male QD X 1/2" (13mm)

Kegland
0 Review(s) Write a Review
Status: In Stock
Available: 100
Feature: Male QD|1/2" Barb|13mm Barb
Feature: Kegland
Feature 5 63655
Product Code: KL50746

This JoinTech In-Line Disconnect is a high-performance fitting built for both hot and cold beverage system applications and is meant to be used with other quick disconnect hardware (although, it does not work in conjunction with brass or stainless steel quick disconnects). It is made out of durable, polyketone plastic and features a black UV-stable exterior, a 316 stainless steel spring, and an EPDM O-ring for long-lasting performance. It attaches to 1/2" ID tubing and connects easily to female JoinTech connections.

Whether transferring hot wort or circulating glycol mixtures, this fitting is engineered to perform reliably. When disconnected, the internal auto shut-off valve prevents any flow, making it ideal for pump assemblies and glycol chilling systems where leak prevention is critical.

Specifications:
  • Made out of high quality Polyketone Plastic
  • 316 Stainless Steel Spring
  • EPDM O-Ring
  • Black UV Stable Design
  • Auto Shut Off Valve
  • Male Quick Disconnect
  • 1/2" OD Barb
  • 2" Length
  • 3/8" Flow Path
  • 60 PSI (8.3 BAR) Maximum Pressure
  • Operation Temperature between -40°F to 280°F (-40°C to 138°C)
  • Designed for use with 1/2" ID tubing
