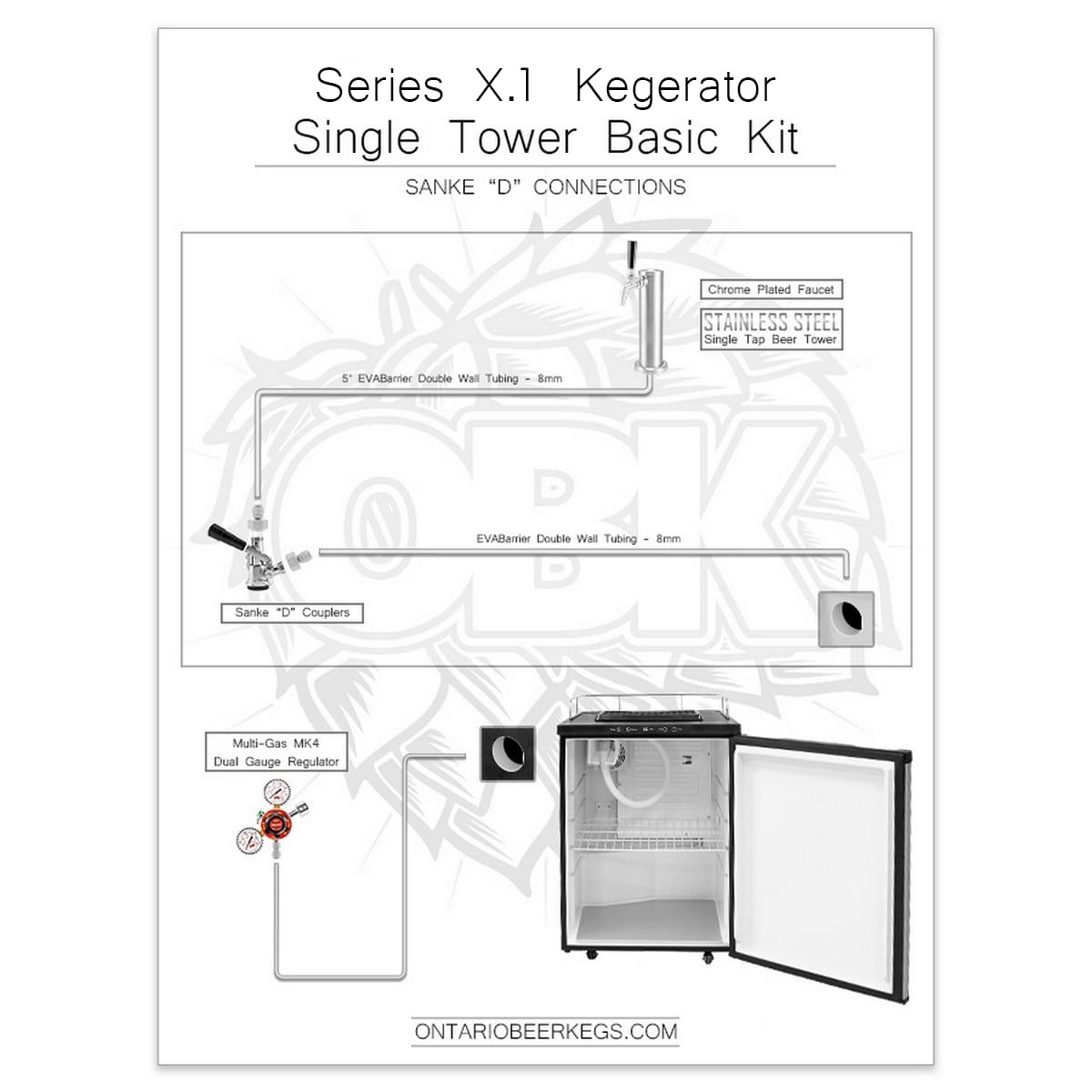

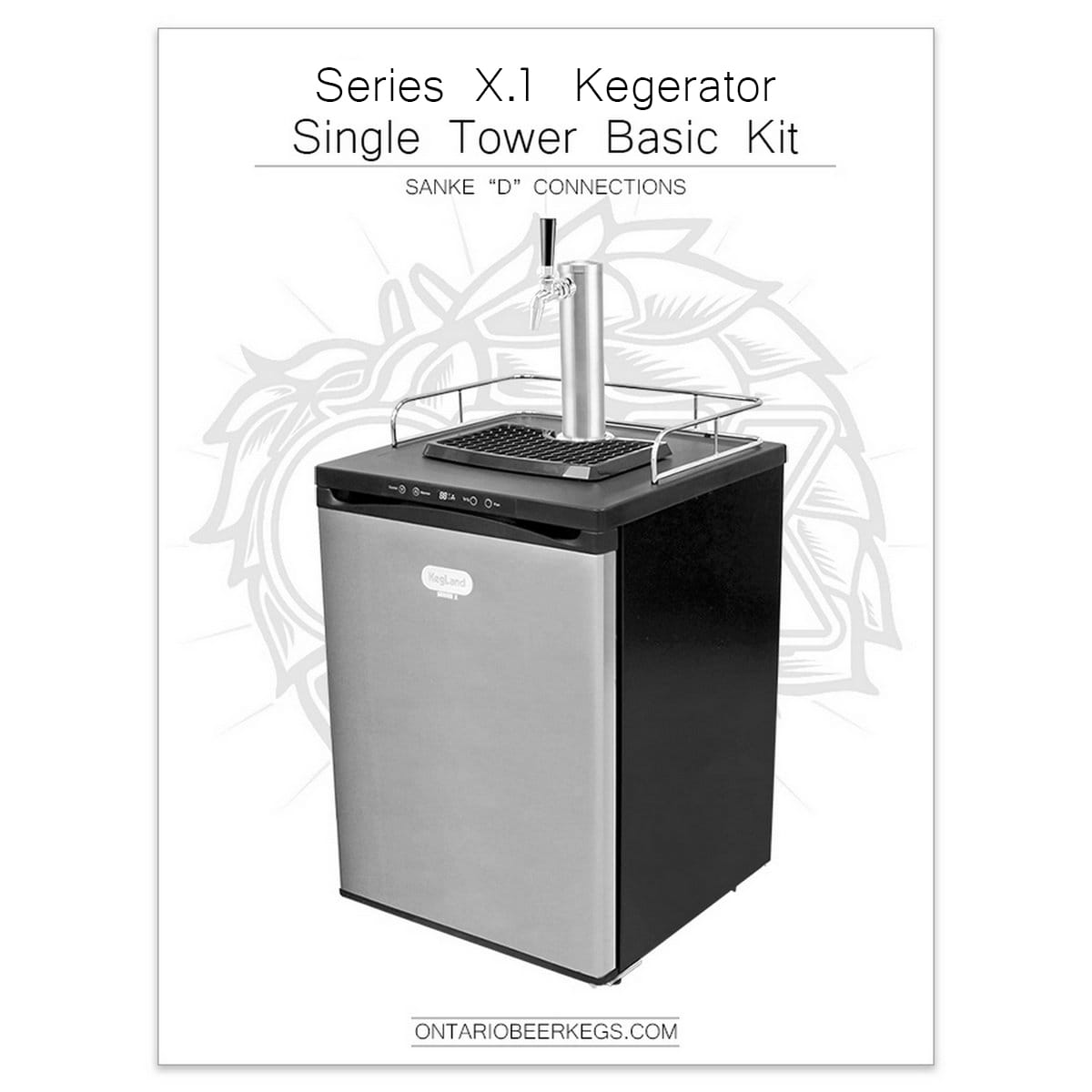

Series X.1 Kegerator Single Tower Basic Kit (Sanke "D" Coupler)

NEW Series X.1 Model - More Power Efficient, Faster Cooling, and Better Insulation!

---

Introducing the all new Series X.1 Kegerator Single Tower Basic Kit!

For the first time OBK is offering kegerator kits that come fully equipped with duotight connections. Using all duotight hardware allows the use of a wide range of different components and easy system upgradability. All you need to provide is your own Co2 tank.

This Kegerator comes equipped with a Multi-Gas Co2 Regulator (100 PSI, 3000 PSI) [MK4] as well as a stainless steel sanke "D" style keg coupler. It has 8mm duotight connections that easily connect to the included Polyethylene Tubing.

This kit comes with all required hardware and equipment to attach a single sanke "D" style keg. Kegs are NOT included.

Key Improvements (From Series X Kegerator):

• 10% More Energy Efficient
• 15% Faster Cooling and Improved Chilling in Warmer Climates
• 40% Thicker Walls for Improved Insulation
• Interior Fridge Light for Better Visibility

Key Improvements (From Series 4 Kegerator):

• 30% Larger Evaporator
• 25% Larger Condenser

Kegerator Fridge Features:

• New and improved Font Fan
• New Circuit Boards with temperature control, calibration, and on-board memory functions
• Sturdy guard rail system
• Increased compressor power while being approximately 20% more electrically efficient
• Improved drip tray & rear cylinder bracket holder
• Glass holder and wire shelf

---

Includes:

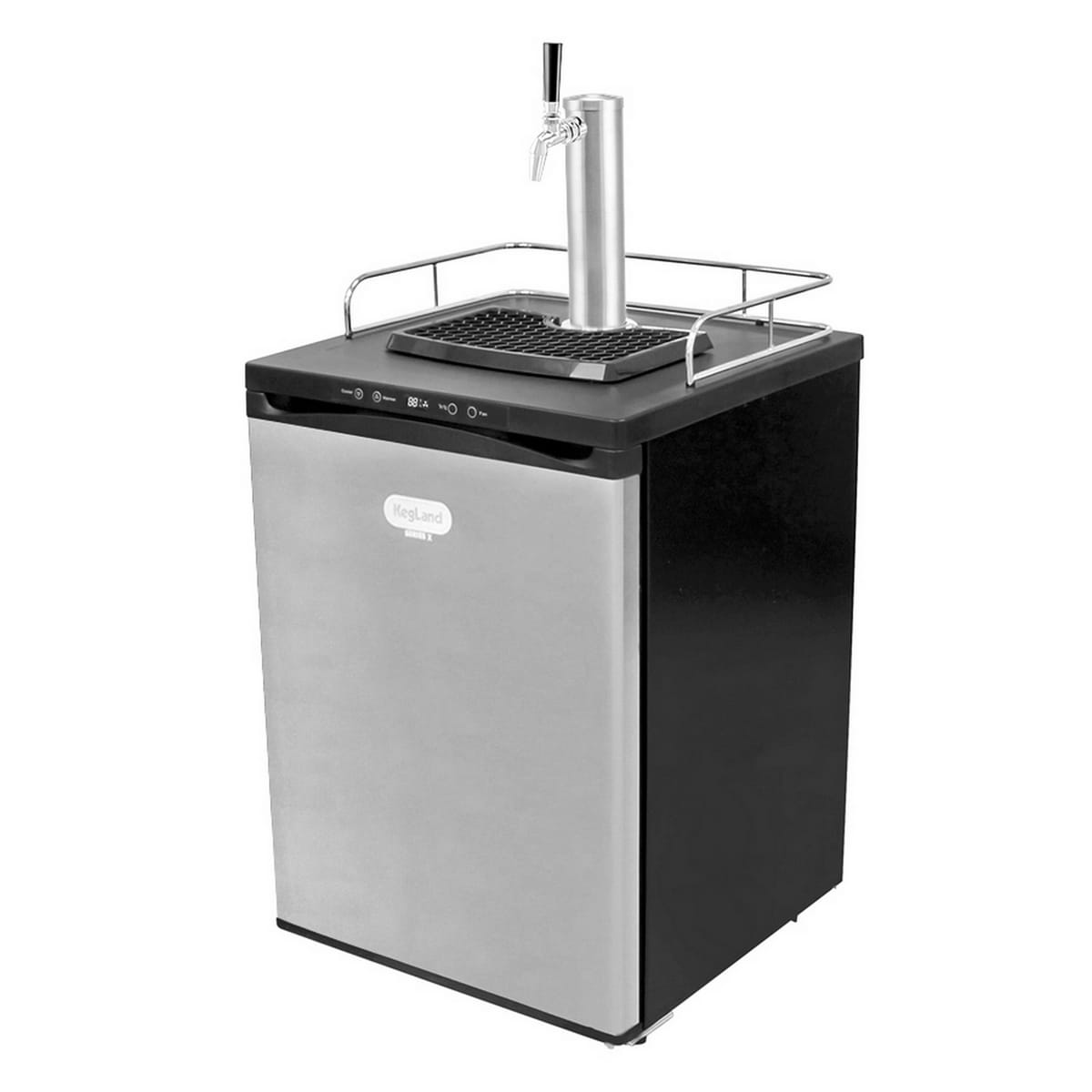

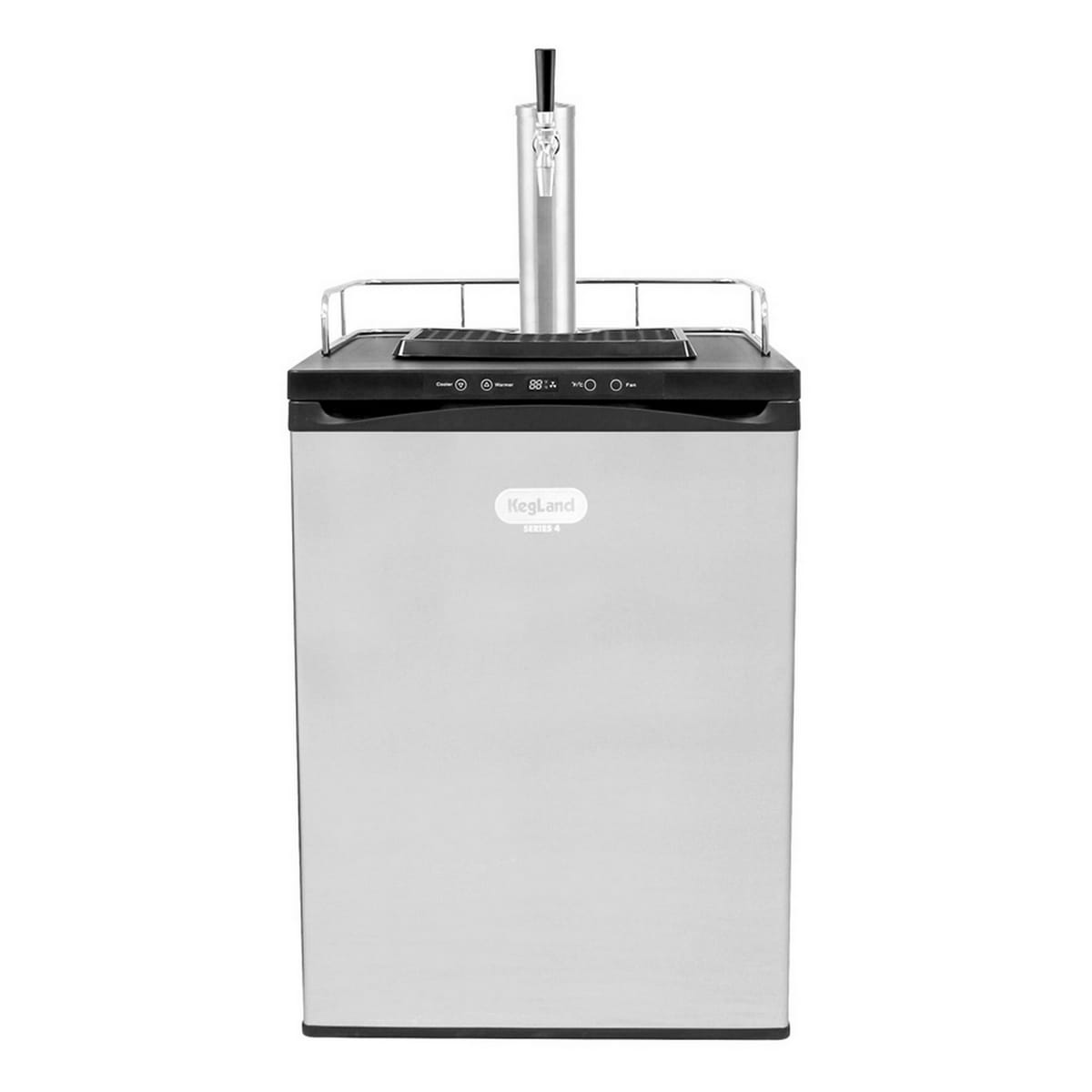

• Series X.1 Kegerator
• Co2 Tank Holder (Maximum of 5lb Co2 Tank)

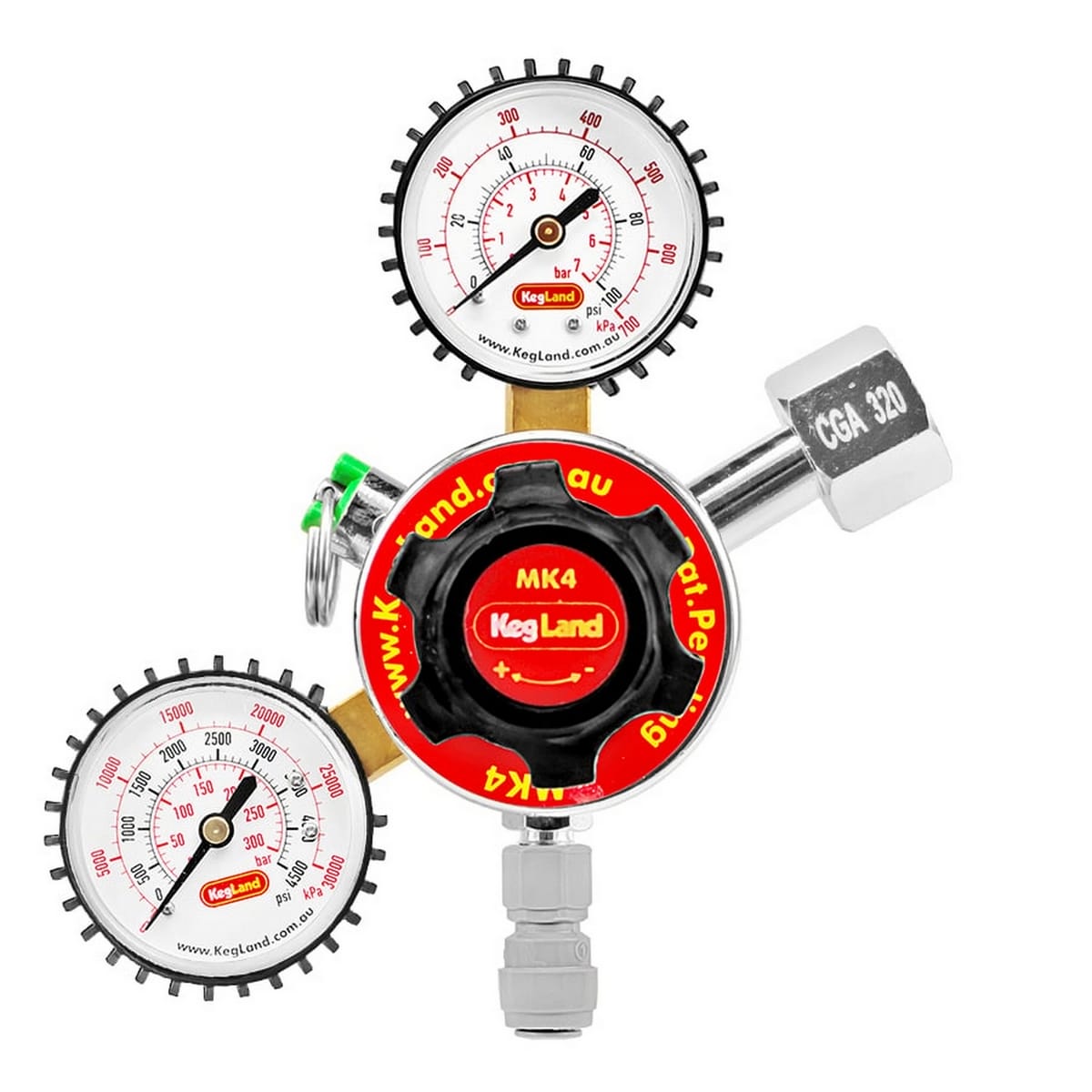

• Multi-Gas Co2 Regulator (100 PSI, 3000 PSI) [MK4]
• Font Fan (toggle on/off)

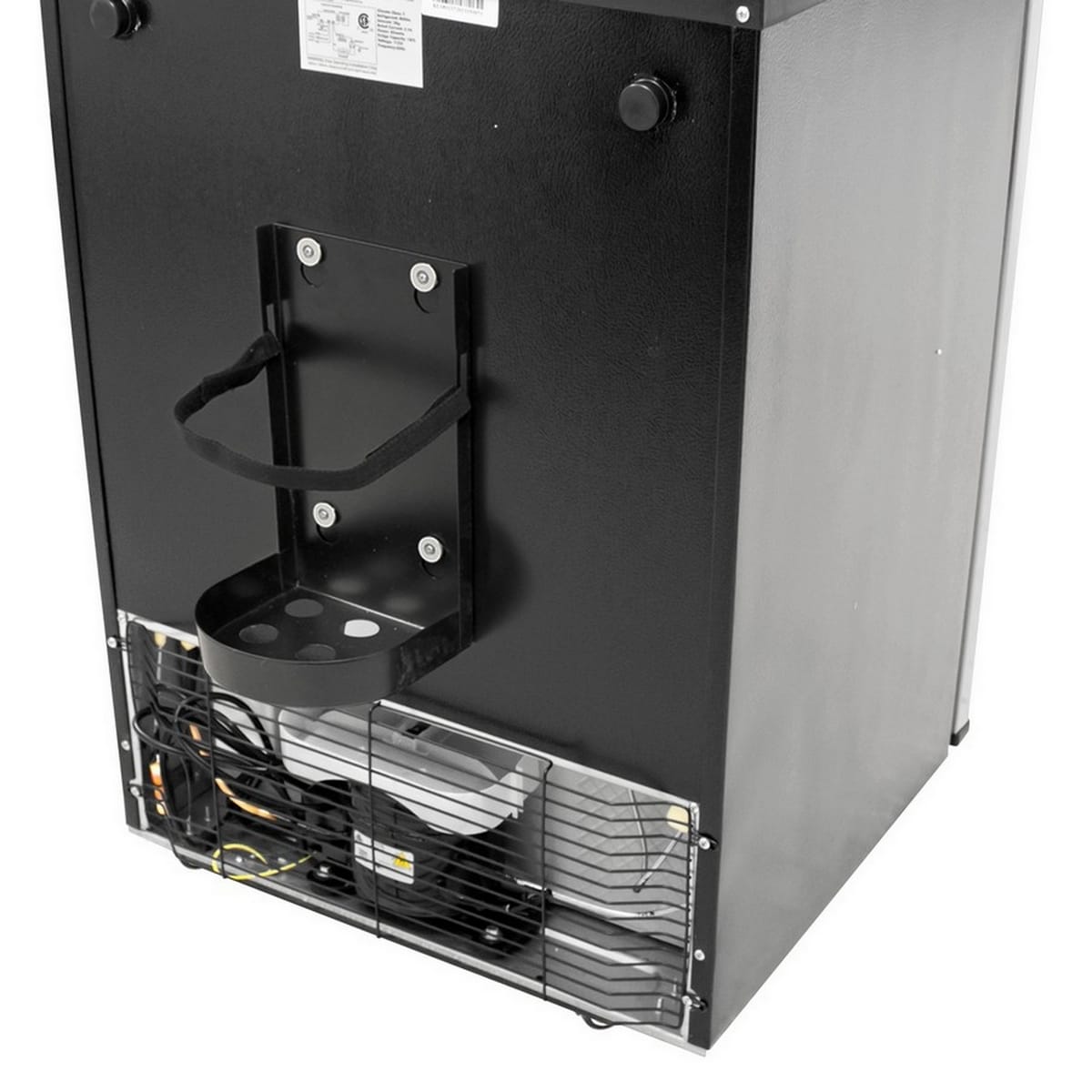

• CO2 Cylinder Bracket Holder
• Guard Rail
• Drip Tray
• Stainless Steel Door
• Black Reinforced Plastic Top

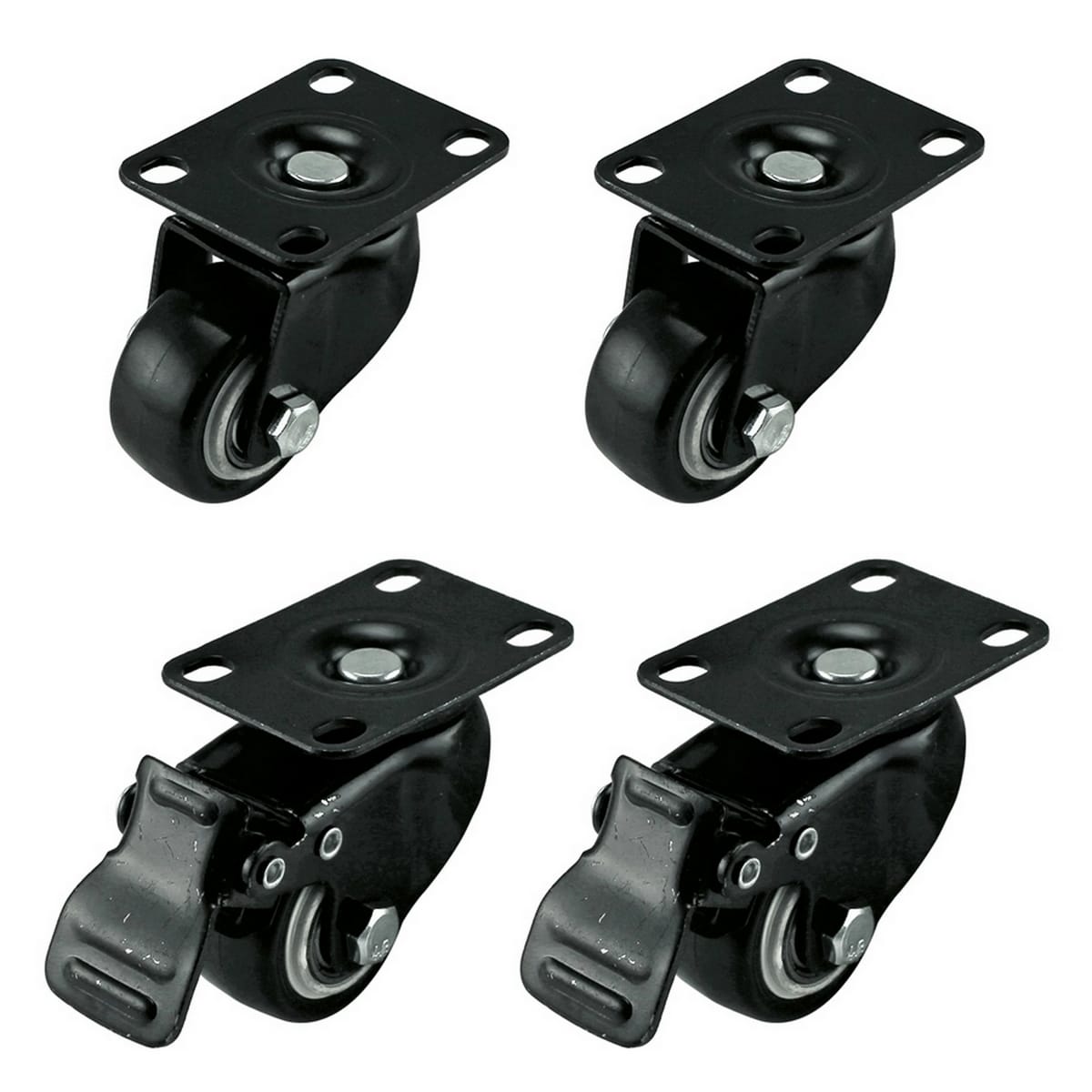

• Reinforced Four Point Anchored Castor Wheels

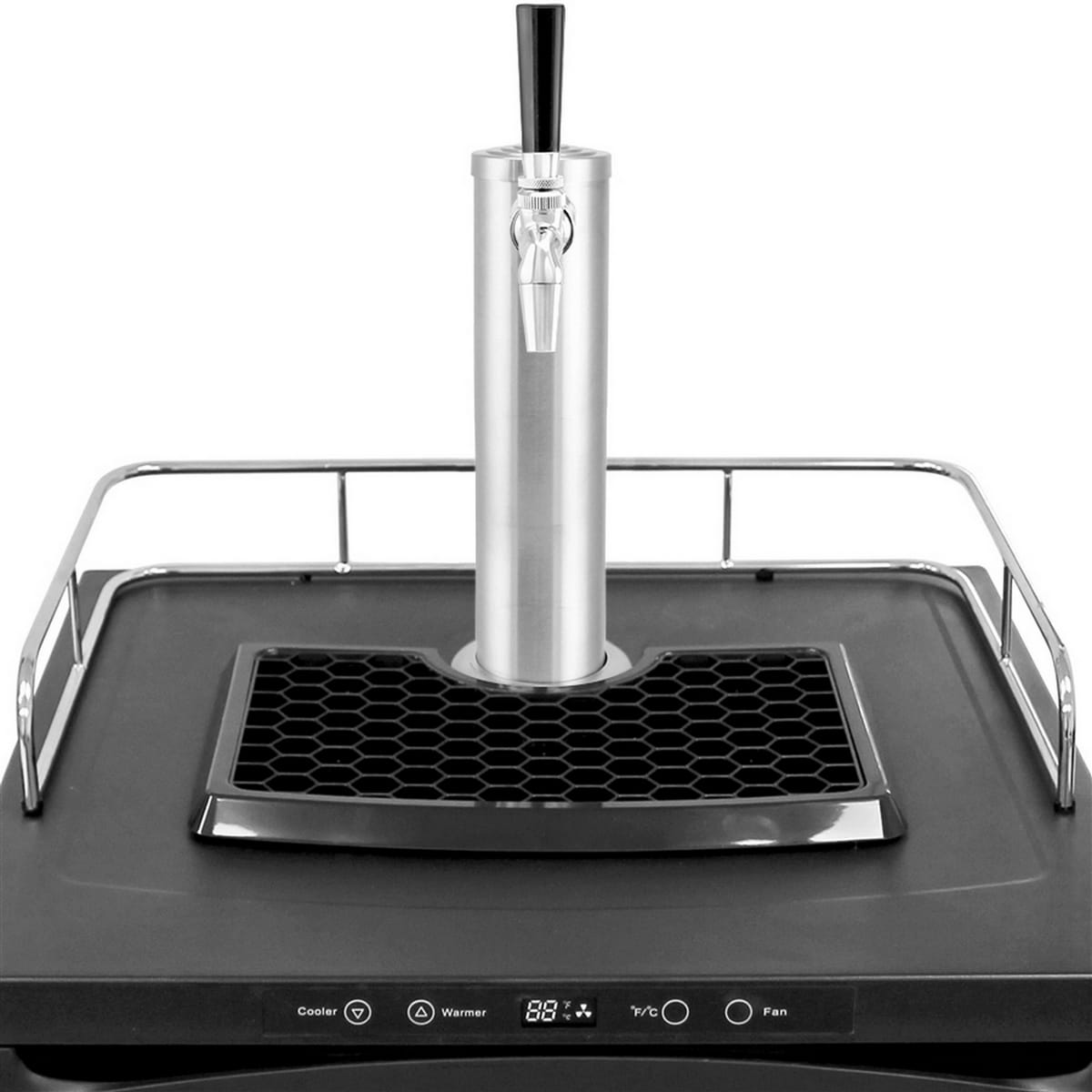

• Brushed Stainless Steel Single Faucet Beer Tower x 1
• Stainless Steel Push-In Tower Shank Assembly - 1/4" (6.5mm) x 1
• Nukatap Stainless Steel Beer Faucet x 1
• Black Plastic Tap Handle x 1

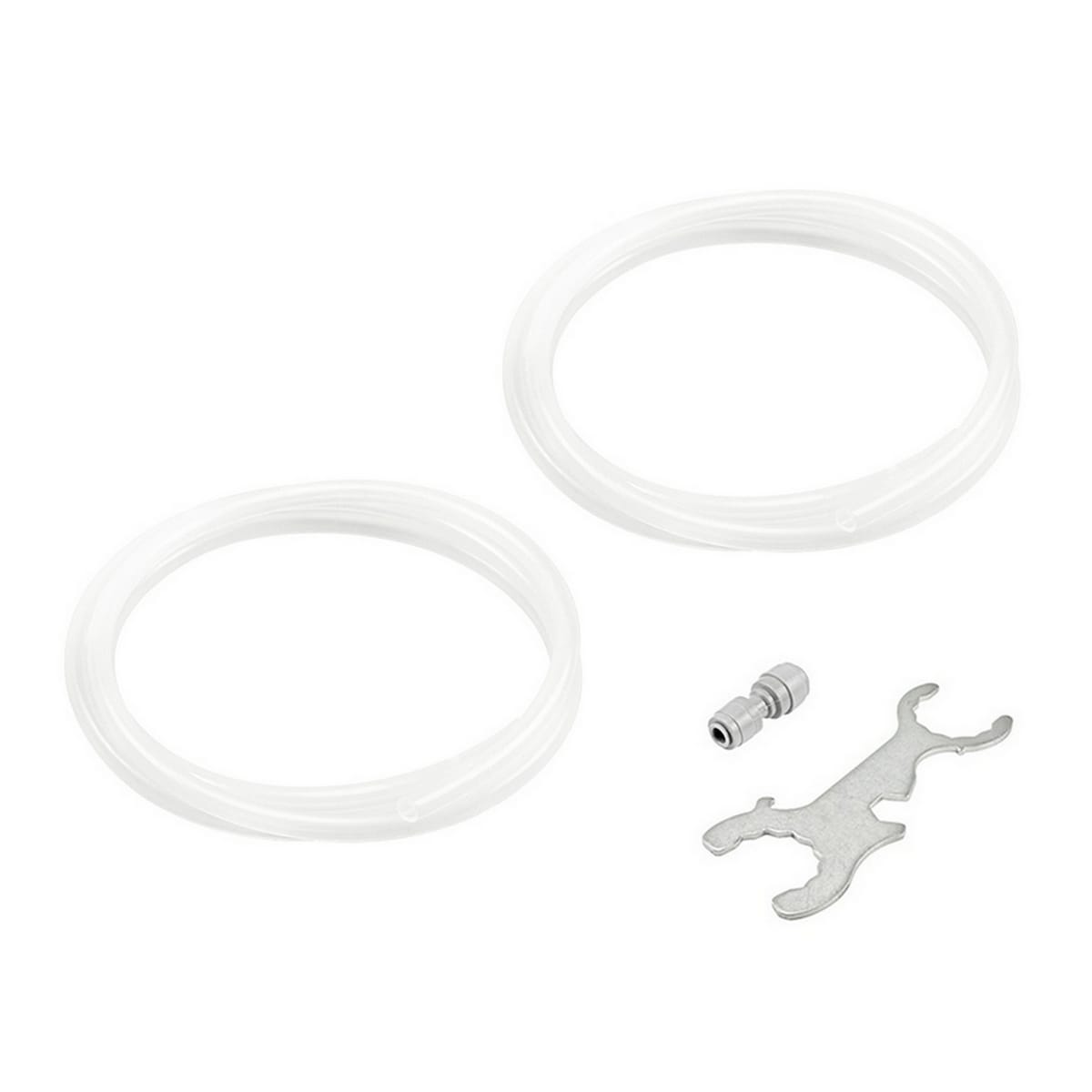

• Polyethylene Double Wall Tubing - 5/32" ID (4mm) X 5/16" OD (8mm) x 5'
• Polyethylene Double Wall Tubing - 13/64" ID (5mm) X 5/16" OD (8mm) x 8'
• Duotight Food Grade Plastic (Push-In) Straight Reducer - 1/4" (6.35mm) X 5/16" (8mm) x 1
• Duotight Food Grade Plastic (Push-In) Fitting - 7/8"-14 (5/8" Female BSP) X 5/16" (8mm) x 2
• Stainless Steel Sanke "D" Style Keg Coupler - Squeeze Handle x 1
• 5-in-1 Tap and Cylinder Tool x 1
• Mounting Hardware
• 110V

Exterior Dimensions:

• Depth (with Co2 Holder): 31 1/4"
• Depth (no Co2 Holder): 25"
• Width: 23 5/8"
• Height (no Wheels, Tower, or Rails): 33 1/2"
• Height (with Tower): 48 3/4"

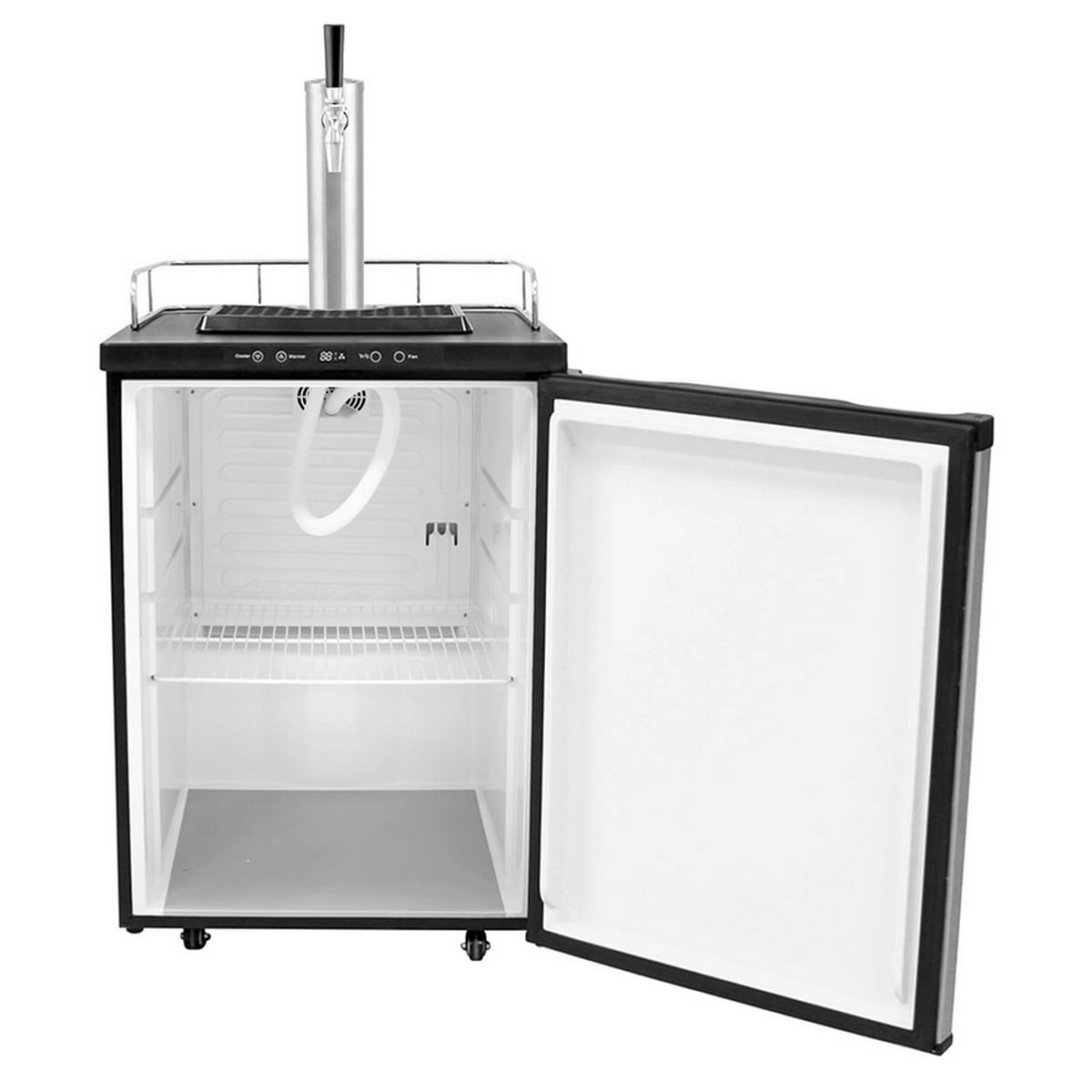

Interior Dimensions:

• Height: 28 3/8"
• Width: 19 3/8"
• Depth: 17 1/2"

Shipping Dimensions:

• Height: 36"
• Width: 29"
• Depth: 26"

---
