Series X Kegerator Quad Tower Basic Kit (Ball Lock Cornelius)
Series X Kegerator Quad Tower Basic Kit - Ball Lock Connections
Series X Kegerator Quad Tower Basic Kit (Ball Lock Cornelius)
0
Review(s)
0
0
5
Write a Review
Your Price:
$979.99
Part Number:
series-x-keg-4tap-ball-lock-basic-kit
Availability:
In Stock.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Features
Instructions
Introducing the all
new
Series X Kegerator Quad Tower Basic Kit!
For the first time OBK is offering kegerator kits that come fully equipped with duotight connections. Using all duotight hardware allows the use of a wide range of different components and easy system upgradability. All you need to provide is your own Co2 tank.
This Kegerator comes equipped with a
Multi-Gas Co2 Regulator (100 PSI, 3000 PSI) [MK4]
as well as beverage and gas disconnects. It has 8mm duotight connections that easily connect to the included Polyethylene Tubing.
This kit comes with all required hardware and equipment to attach four ball lock kegs. Kegs are
NOT
included.
Kegerator Fridge Features:
New and improved Font Fan
New Circuit Boards with temperature control, calibration, and on-board memory functions
Sturdy guard rail system
Increased compressor power while being approximately 20% more electrically efficient
Improved drip tray & rear cylinder bracket holder
Glass holder and wire shelf
Includes:

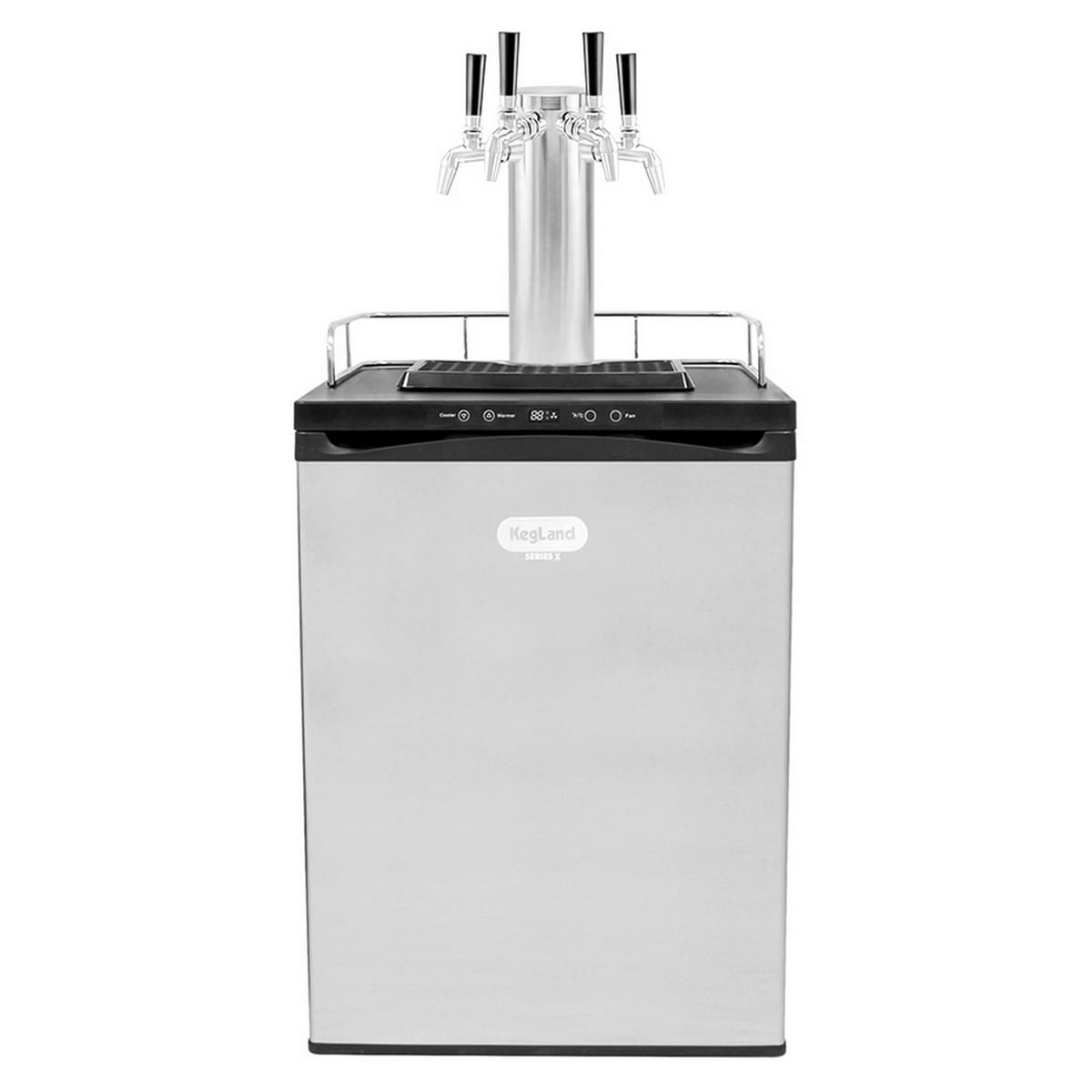

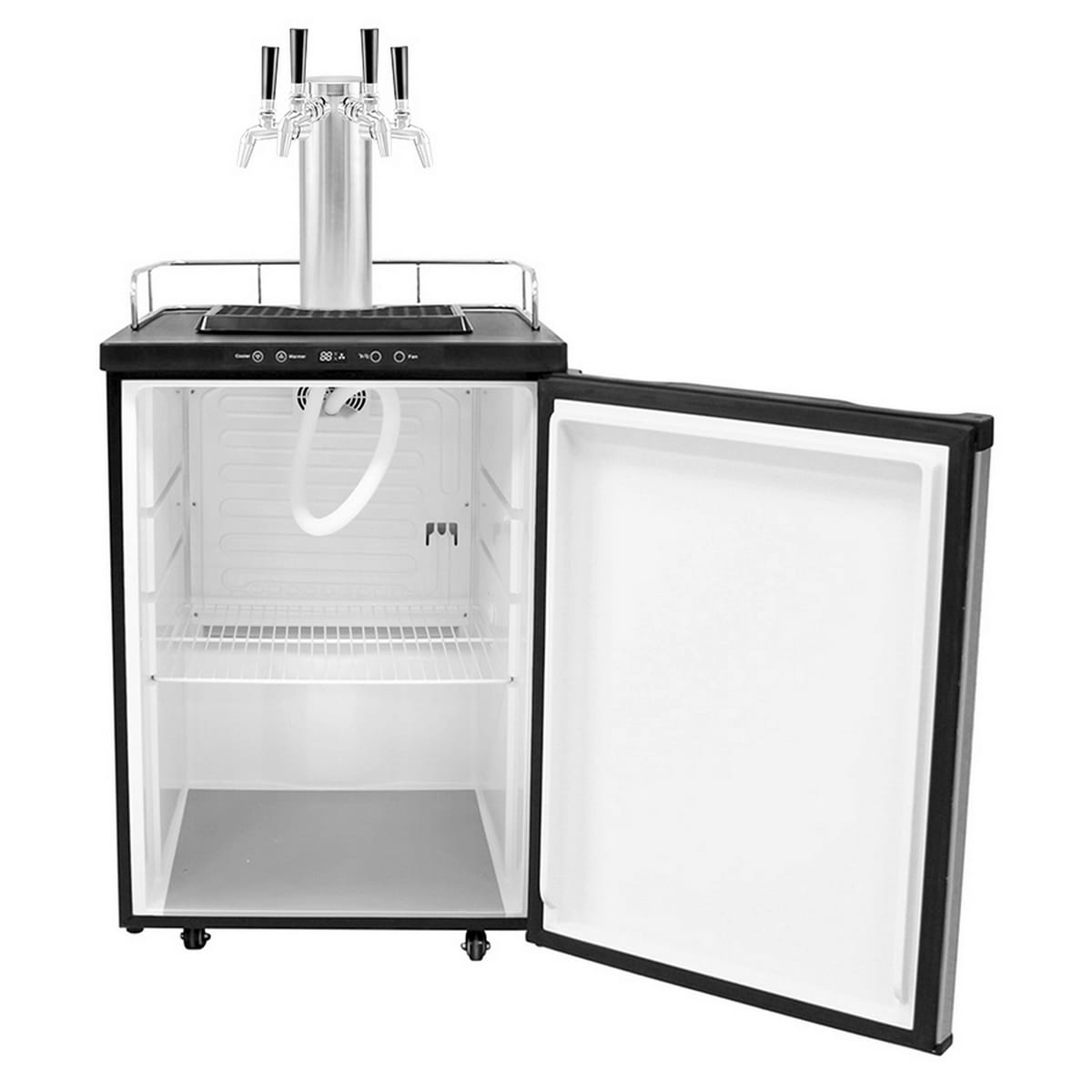

Series X Kegerator

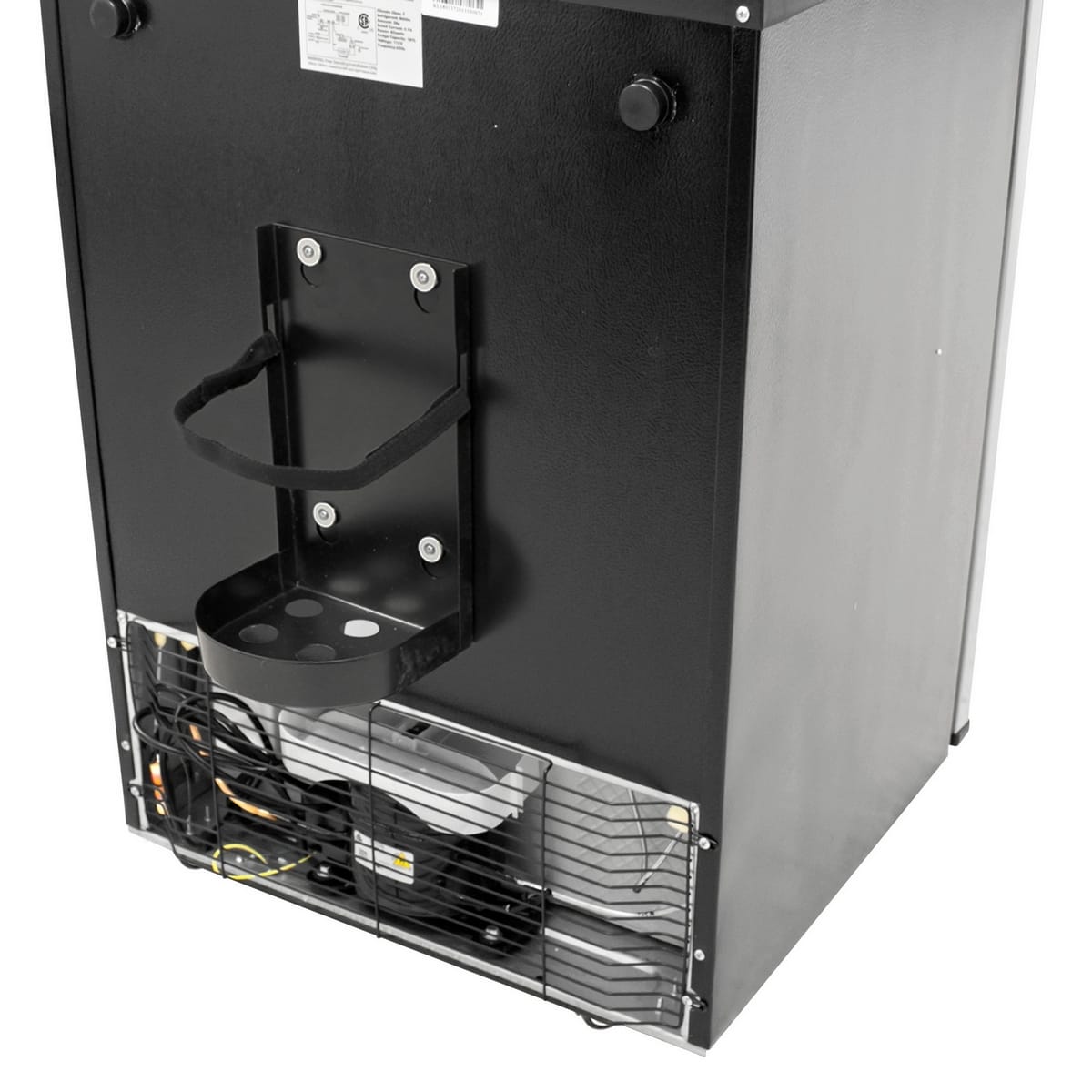

Co2 Tank Holder (Maximum of 5lb Co2 Tank)

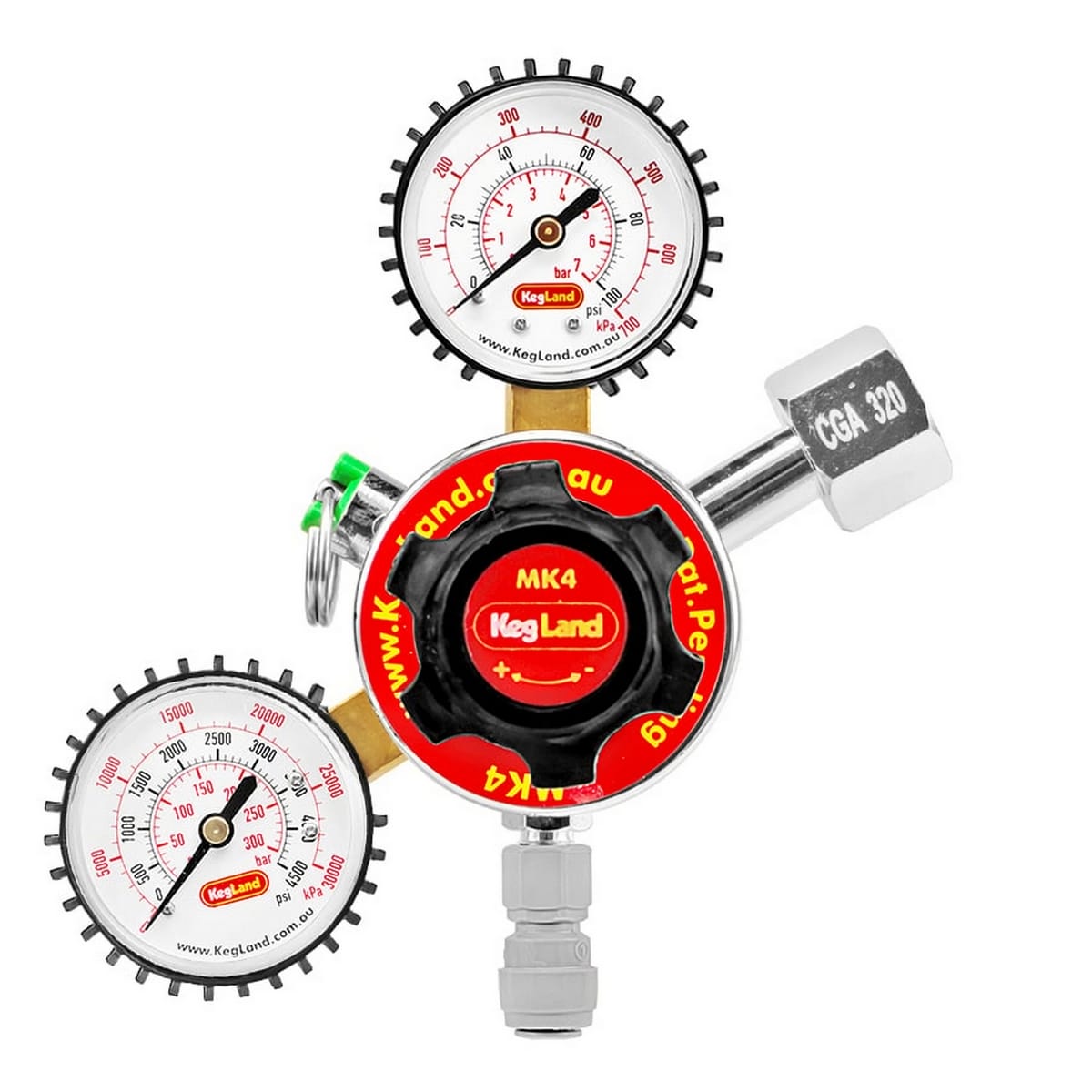

Multi-Gas Co2 Regulator (100 PSI, 3000 PSI) [MK4]
Font Fan (toggle on/off)
CO2 Cylinder Bracket Holder
Guard Rail
Drip Tray
Stainless Steel Door
Black Reinforced Plastic Top

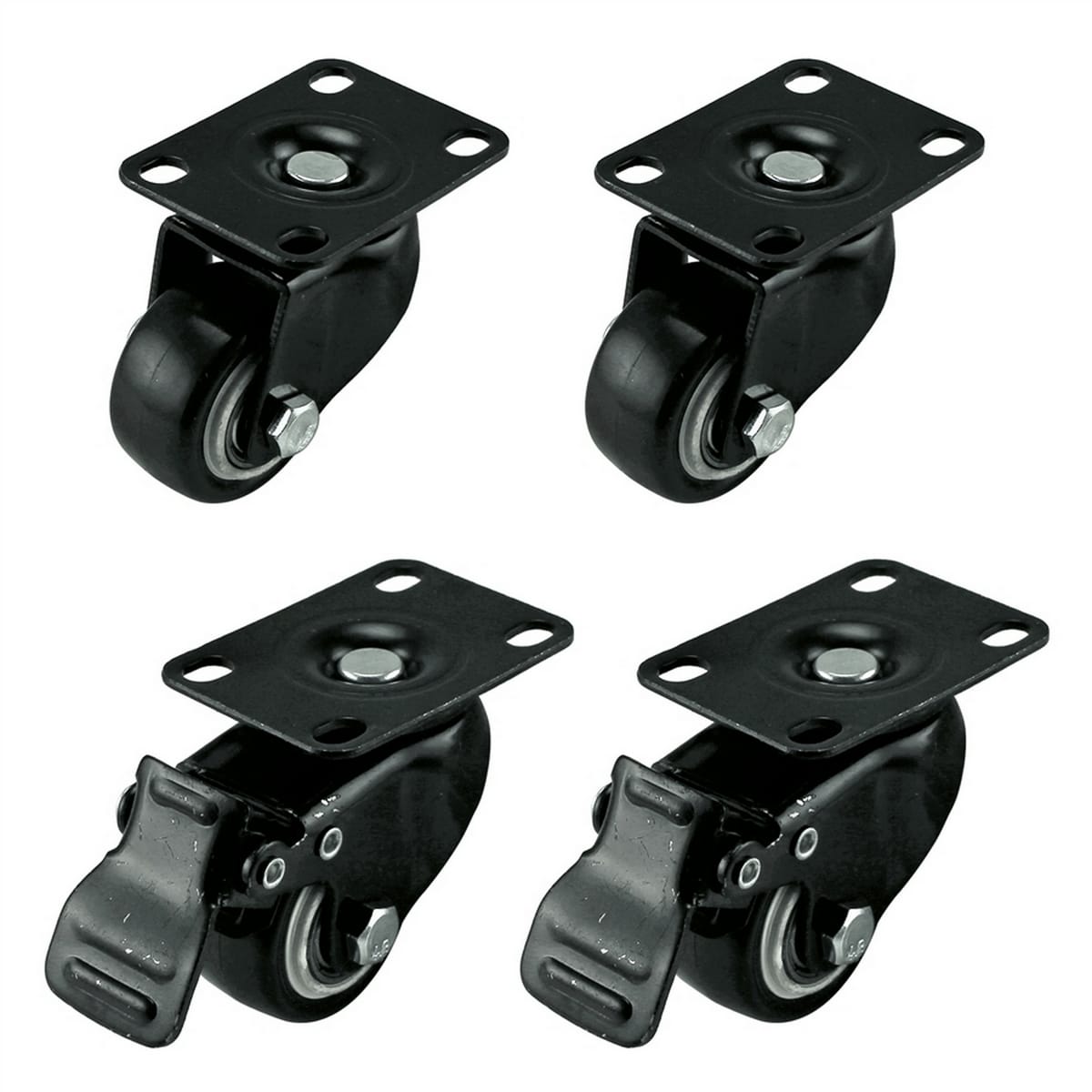

Reinforced Four Point Anchored Castor Wheels

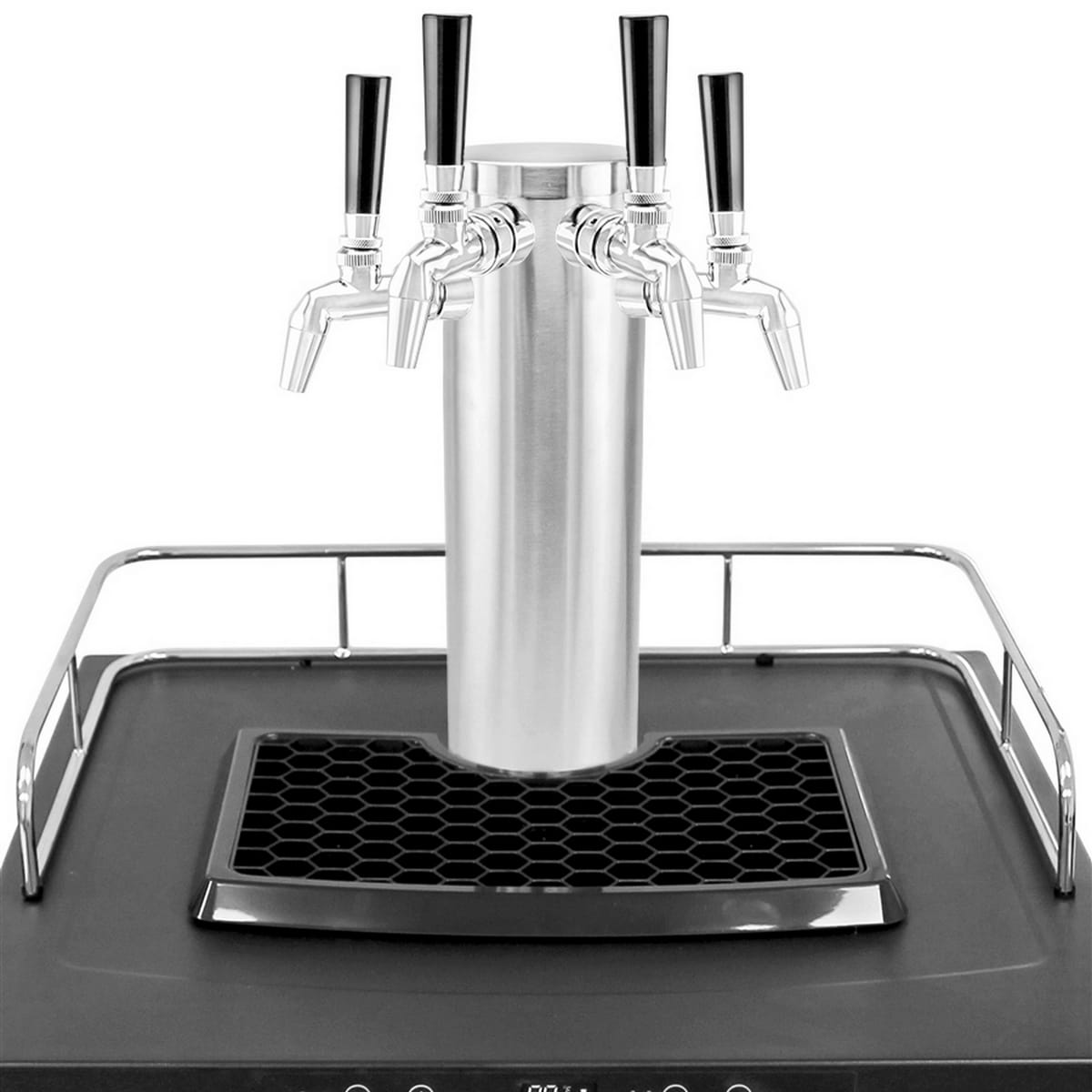

Brushed Stainless Steel Four Faucet Beer Tower x 1
Stainless Steel Push-In Tower Shank Assembly - 1/4" (6.5mm) x 4
Chrome Plated Brass Faucets x 4
Black Plastic Tap Handles x 4

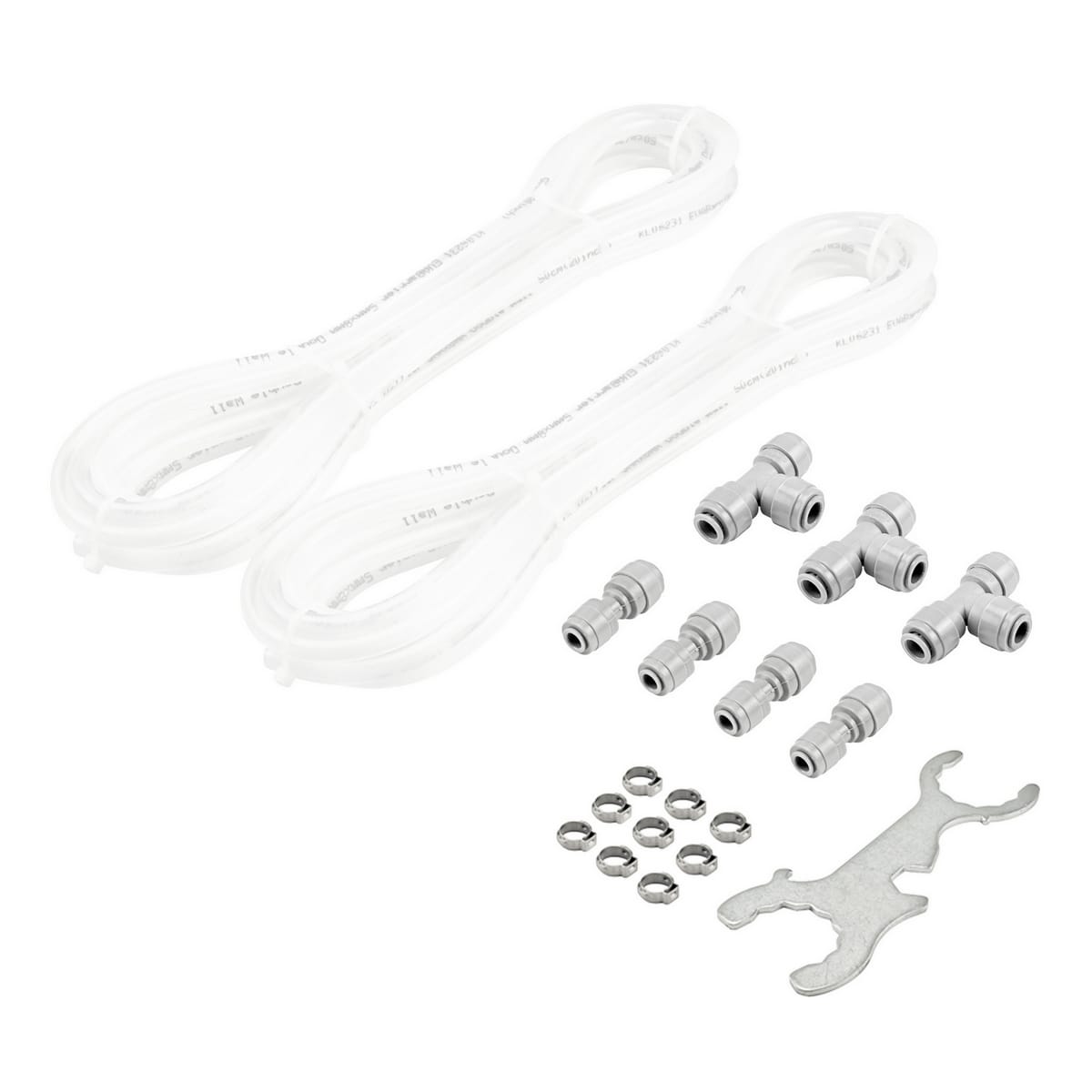

Polyethylene
Double Wall Tubing - 5/32" ID (4mm) X 5/16" OD (8mm) x 20'
Polyethylene
Double Wall Tubing - 13/64" ID (5mm) X 5/16" OD (8mm) x 16'
Duotight Food Grade Plastic (Push-In) Straight Reducer - 1/4" (6.35mm) X 5/16" (8mm) x 4
Duotight Food Grade Plastic (Push-In) Fittings - 1/4" FFL X 5/16" (8mm) x 8
Duotight Food Grade Plastic (Push-In) Equal Tee - 5/16" (8mm) x 3
Ball Lock MFL Threaded Beverage Disconnect x 4
Ball Lock MFL Threaded Gas Disconnect x 4
5-in-1 Tap and Cylinder Tool x 1
Mounting Hardware
110V
Exterior Dimensions:
Depth (with Co2 Holder): 31 1/4"
Depth (no Co2 Holder): 25"
Width: 23 5/8"
Height (no Wheels, Tower, or Rails): 33 1/2"
Height (with Tower): 52 1/8"
Interior Dimensions:
Height: 28 3/8"
Width: 19 3/8"
Depth: 19 1/2"
Depth (Minus Bottom Step): 16 7/8"
Shipping Dimensions:
Height: 36"
Width: 29"
Depth: 26"

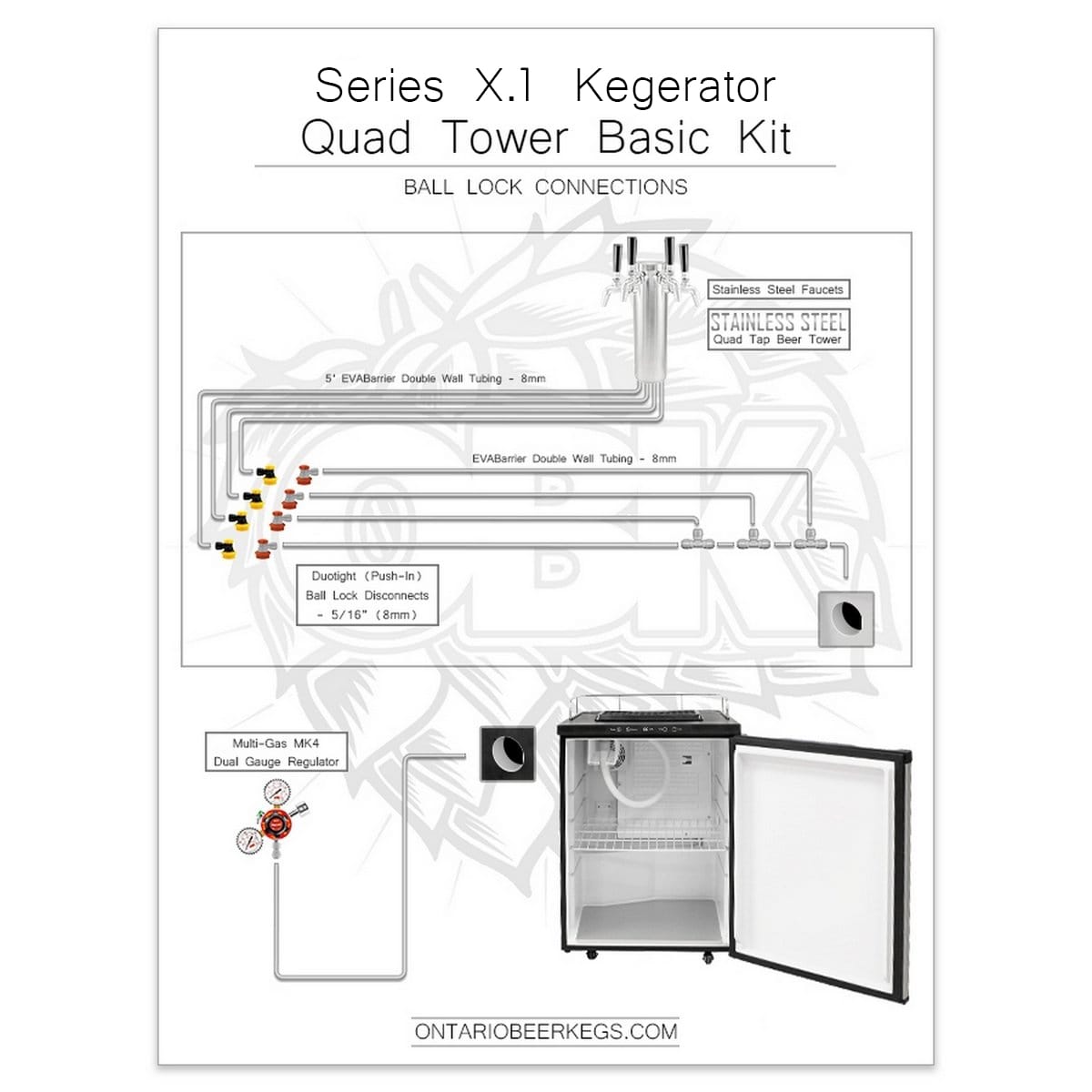

To put together your Kegerator unit simple follow these steps:
Exterior Installation Instructions:
Remove the black cap at the top of the fridge and prepare the quad tower for installation.
With the tower attach the included hardware including the tower shanks and the duotight reducers.
The reducers are to be attached to the tower shanks and the EVABarrier tubing, with the larger of the two push in fitting ends attaching to the tubing and the smaller end to the tower shanks.
Insert the 4mm x 8mm EVABarrier tubing section into the duotight push in fittings inside of the tower.
With four of the included FFL duotight fittings attach them to the other end of the EVABarrier tubing.
Continue by securing your tower to the fridge allowing the beverage lines to go into the fridge.
Open up the fridge and remove the black cap inside and go to the rear and remove the other black cap.
Interior Installation Instructions:
With the exterior portion complete now it is time to install the interior hardware/equipment
Grab the 5mm x 8mm EVABarrier gas tubing portion and cut it into 7 segments. Four of the segments are meant to be shorter and go to the four kegs, meanwhile the fifth segment goes from the interior of the kegerator to the outside regulator. The sixth and seventh segments should only be around 2 - 2 1/2" on length and used as a joiner between the three 8mm duotight tees.
With the 5mm x 8mm EVABarrier joiner portions attach the three duotight tees together.
Grab the four shorter 5mm x 8mm EVABarrier gas tubing portions and attach them to the other four FFL duotight fittings.
Using these four gas lines attach them to the joined together 8mm duotight tees.
Using the last gas line put one of the ends through the hole in the fridge.
Please Note:
It is recommended that you add some form of insolation around the gas line in the hole to ensure that the cold temperatures of the fridge do not escape. Doing so will cut down on energy consumption and ensure that the internal temperatures are maintained better.
After the gas line has been put through the open hole take the other end and insert it into the joined together 8mm duotight tees.
Take the duotight fittings that are attached to the EVABarrier tubing lines and attach them to the included gas and beverage disconnects.
Attach the beverage and gas disconnects to your ball lock kegs.
Co2 Installation Instructions:
Take the Co2 tank holder and hang it on the exterior hanging pegs at the back of the fridge and set your Co2 tank onto it. Secure in place with the included strap.
Attach your MK4 Regulator to the Co2 tank and attach the gas line coming out of the fridge to it using the FFL duotight fitting that comes preinstalled on your MK4 Regulator.
With that last step you are done and ready to dispense!
×
TOP
Categories
Brewing Equipment
View All Brewing Equipment
Homebrew Equipment Kits
Pots & Kettles
Grain Mills
Mashing
Burners
Chillers & Coils
Fermenting
Homebrew Bottling
Ss Brewtech
Spike Brewing
Cleaning & Sanitation
Barrels & Casks
BrewZilla & Accessories
Distilling Equipment
Brew Pumps & Accessories
Testing & Scales
Tools & Utensils
Tubing & Accessories
Replacement Parts
Latest Products
Draft Equipment
View All Draft Equipment
Kegerator Kits (Store Bought)
Kegerator Kits (Homebrew)
Kegging & Dispensing
Carbonating
Line Cleaning Kits
Cleaners
Latest Products
Hardware
View All Hardware
Fittings
Plugs, Caps, & Bushings
Adapters
Hardware Kits
Couplers
Lock-Nuts, O-Rings, & Washers
Quick Disconnects
Camlocks
Dip Tubes & Pick Ups
Filtering
Hose Clamps
Bulkheads
Thermometers
Thermowells
Tri-Clover
Valves
Electrical
Latest Products
Kits & Ingredients
View All Kits & Ingredients
Beer Recipe Kits
Grains
Malt Extract
Hops
Yeasts
Additives & Adjuncts
Extracts
Spices
Syrups & Sugars
Latest Products
Wine & Cider
View All Wine & Cider
Wine & Cider Kits
Ingredients
Equipment & Hardware
Latest Products
Gifts & Books
View All Gifts & Books
Bayou Classic
Glasses & Merchandise
Apparel
Books & Instructions
Gift Certificates
Latest Products
Menu Links
0
Items
×
Store Search
